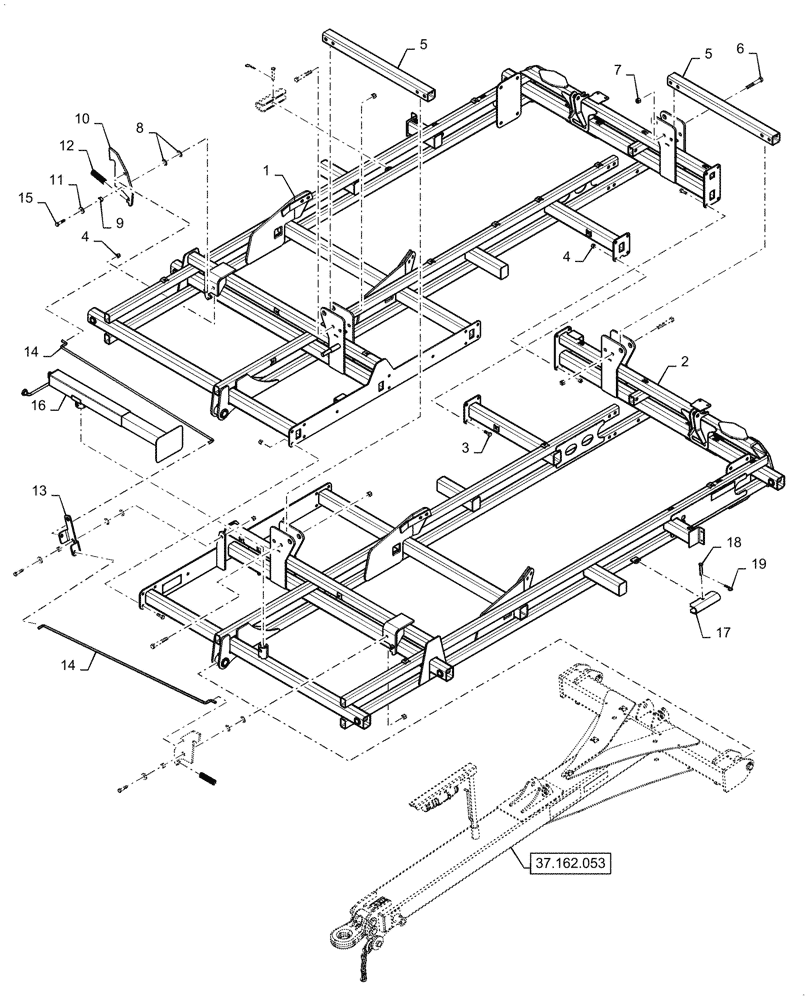

Запчасти Case IH TM255 (39.100.071) - MAIN FRAME 51,55,60 PULL HITCH (39) - FRAMES AND BALLASTING

1

47776044

FRAME

Right 13 Foot

1шт.

2

47776045

FRAME

Left 13 Foot

1шт.

3

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

20шт.

4

85700693

NUT,5/8" - 11, Gr C

23шт.

5

47849214

TUBE

3x3 Bolt On

2шт.

6

280455

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

8шт.

7

280375

NUT,3/4"-10, GC

8шт.

8

17618030

BUSHING

1.125"

6шт.

9

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

3шт.

10

48026588

PLATE

Latch

2шт.

11

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

3шт.

12

24117700

COMPRESSION SPRING

Black

2шт.

13

47806715

PLATE

Latch Rocker

1шт.

14

47806740

ROD

Latch 13 Foot

2шт.

15

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

3шт.

16

84399165

JACK

5000 LB

1шт.

17

47666377

STOP

Transport 1.5"

2шт.

18

14810251

HEADED PIN,15.88mm OD x 96.77mm L

2шт.

19

14720411

COTTER PIN

1/8" x 2"

2шт.

20

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

1шт.

21

47559030

BUSHING

1шт.

22

311864A1

REFLECTOR

1шт.

23

84600515

WARNING DECAL

Pinch Hazard

1шт.

24

84599919

DECAL

Crushing Hazard

1шт.

25

87414072

DECAL

Depth Control

1шт.

26

84599877

DECAL

Stored Energy

1шт.
