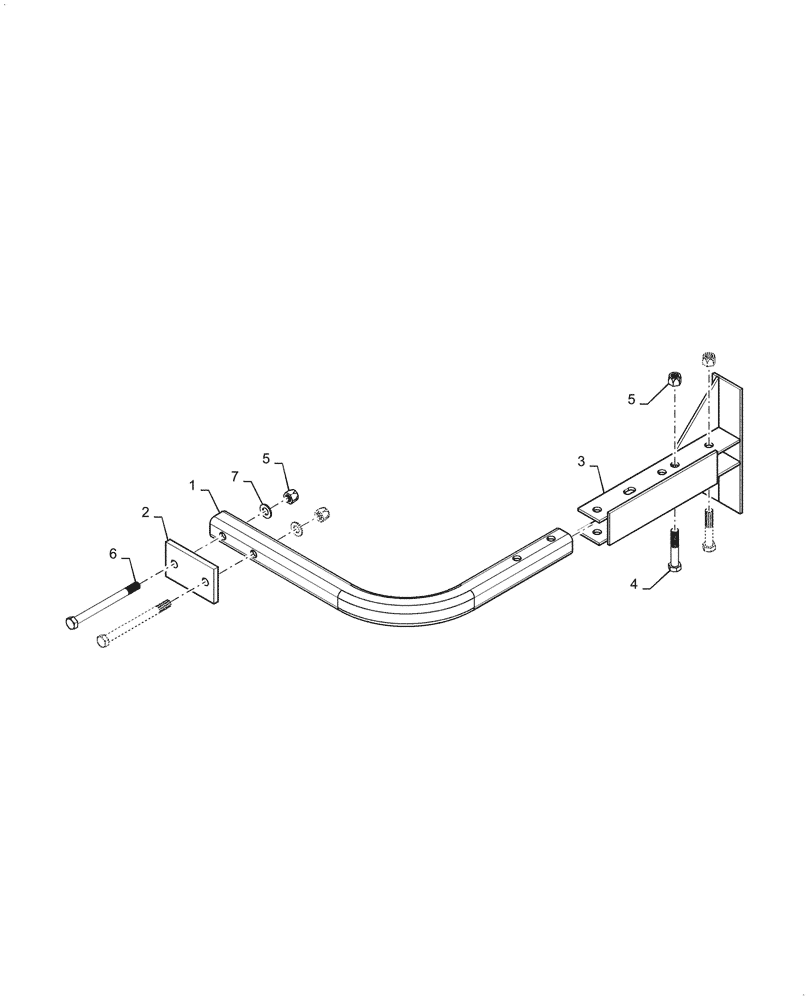

Запчасти Case IH TM255 (37.166.060) - STOP ASSEMBLY, W/ 4-BAR TIGER-TINE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

48071403

Tube

TUBE

1шт.

2

48071396

Mount

PLATE

1шт.

3

48071442

Tiger-Tine

STOP

1шт.

4

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

6

280361

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

2шт.

7

84156169

WASHER,0.66" ID x 1.25" OD x 0.1" Thk

2шт.
