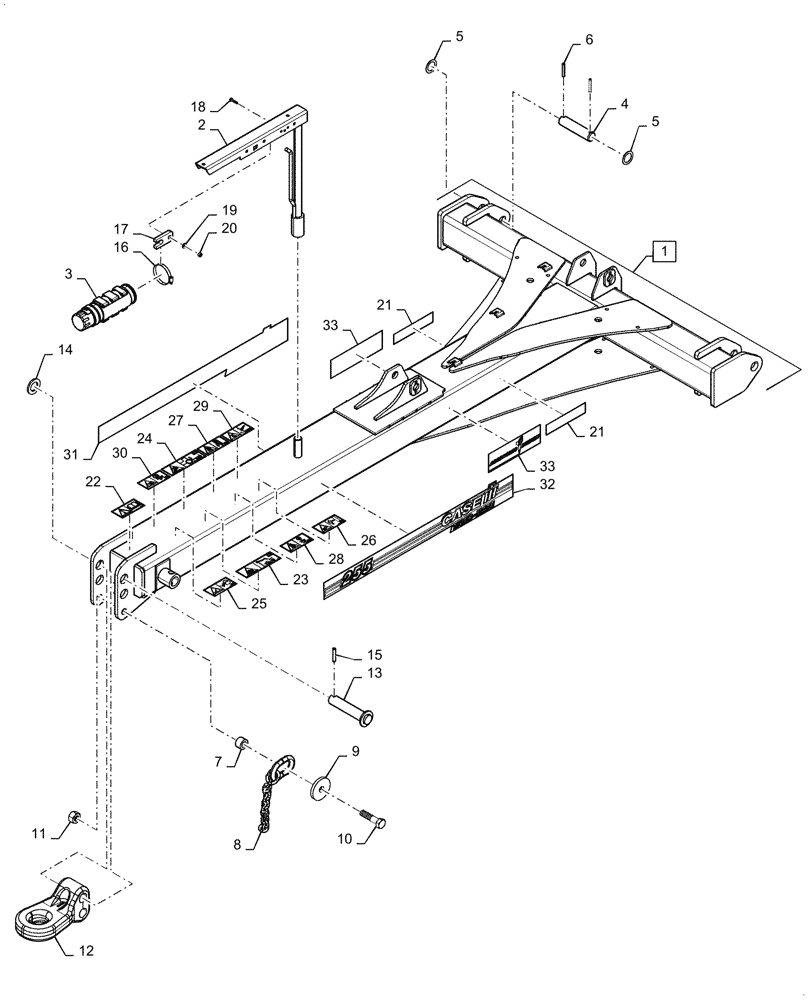

Запчасти Case IH TM255 (37.162.053) - HITCH CONSTANT LEVEL 51,55,60 FOOT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47792273

FRAME

T Hitch Constant Level With Decals Incl 21-33

1шт.

2

87452523

MOUNTING PARTS

Swining Hose Boom

1шт.

3

47889193

BOX

Manual Canister

1шт.

4

14892649

SPECIAL PIN,41.28mm OD x 177.8mm L

2шт.

5

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

4шт.

6

87635861

ROLL PIN

Spring .375 x 2.500"

4шт.

7

04681211

BUSHING

1.75 OD x 1.03 ID

1шт.

8

87389757

CHAIN

3000 Lbs

1шт.

9

06400065

WASHER

Heavy

1шт.

10

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

11

86992219

LOCK NUT

1шт.

12

84399325

HITCH

Cat V 2 Hole

1шт.

13

84257536

PIN

Hitch

2шт.

14

17426001

WASHER

1 5/8"

2шт.

15

47478854

PIN

7/16"

2шт.

16

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

17

06403190

BAR ASSY.

Spacer

1шт.

18

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

311864A1

REFLECTOR

2x9 Amber

2шт.

22

47358801

CAUTION DECAL

Caution ISO

1шт.

23

84599914

DECAL

Electrical Shock

1шт.

24

84599861

DECAL

Tipping Hazard

1шт.

25

84600504

DECAL

High PSI

1шт.

26

84600501

WARNING DECAL

Oil Penetration

1шт.

27

84600535

DECAL

Warning

1шт.

28

84599866

DECAL

Towning Hazard

1шт.

29

84599911

CAUTION DECAL

Cylinder Lock

1шт.

30

84599913

DECAL

No Riders

1шт.

31

47947602

DECAL

255 Tigermate Left

1шт.

32

47947601

DECAL

255 Tigermate Right

1шт.

33

47623656

DECAL

Agronomic

2шт.
