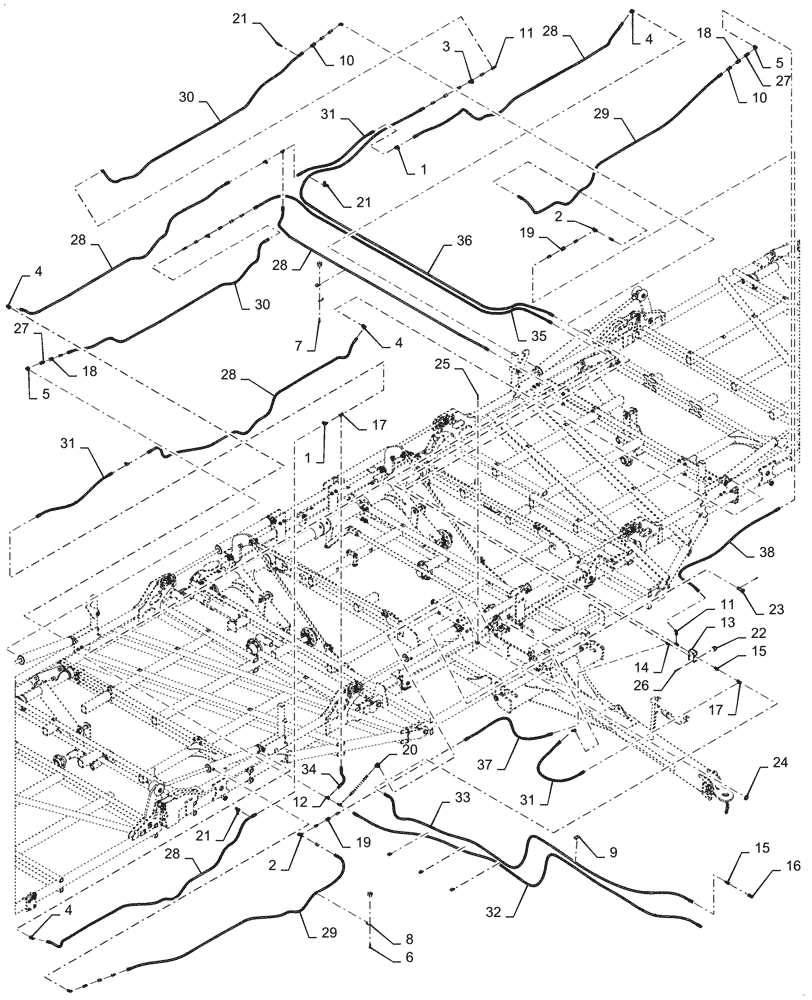

Запчасти Case IH TM255 (35.100.035) - HYDRAULICS FOLD 55/60 FOOT CONSTANT LEVEL HITCH (35) - HYDRAULIC SYSTEMS

1

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

2

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

3

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

24шт.

7

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

8

22510700

HOSE CLAMP,15.86mm

39шт.

9

06200125

HOSE CLAMP

2шт.

10

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

12шт.

11

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

25401258

DIVIDER ASSY.

Valve

1шт.

14

87564739

TEE

3/8" 1/2" x 3/8"

2шт.

15

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

3шт.

16

25705041

COUPLING

3/4"

2шт.

17

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

18

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

6шт.

19

25405015

CONTROL VALVE

Brown

2шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

21

327144A1

STRAP,328mm L

12шт.

22

88902

NUT,3/8"-16

28шт.

23

87023161

HEADED PIN,1" x 3"

1шт.

24

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

25

88182

COTTER PIN,1/4" OD x 2" L

2шт.

26

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

27

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

28

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

.375 x 150"

5шт.

29

139655C2

HYDRAULIC HOSE

.375 x 155"

2шт.

30

1284303C1

HYDRAULIC HOSE

.375 x 145"

2шт.

31

1285380C2

HYDRAULIC HOSE

.375 x 50"

3шт.

32

129764C2

HYDRAULIC HOSE

.375 x 215"

1шт.

33

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

.375 x 230"

1шт.

34

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

.375 x 17"

2шт.

35

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

.375 x 185"

1шт.

36

1284292C1

HYDRAULIC HOSE

.375 x 245"

1шт.

37

1254574C2

HYDRAULIC HOSE

.375 x 60"

1шт.

38

195504C2

HYDRAULIC HOSE

.375 x 80"

1шт.
