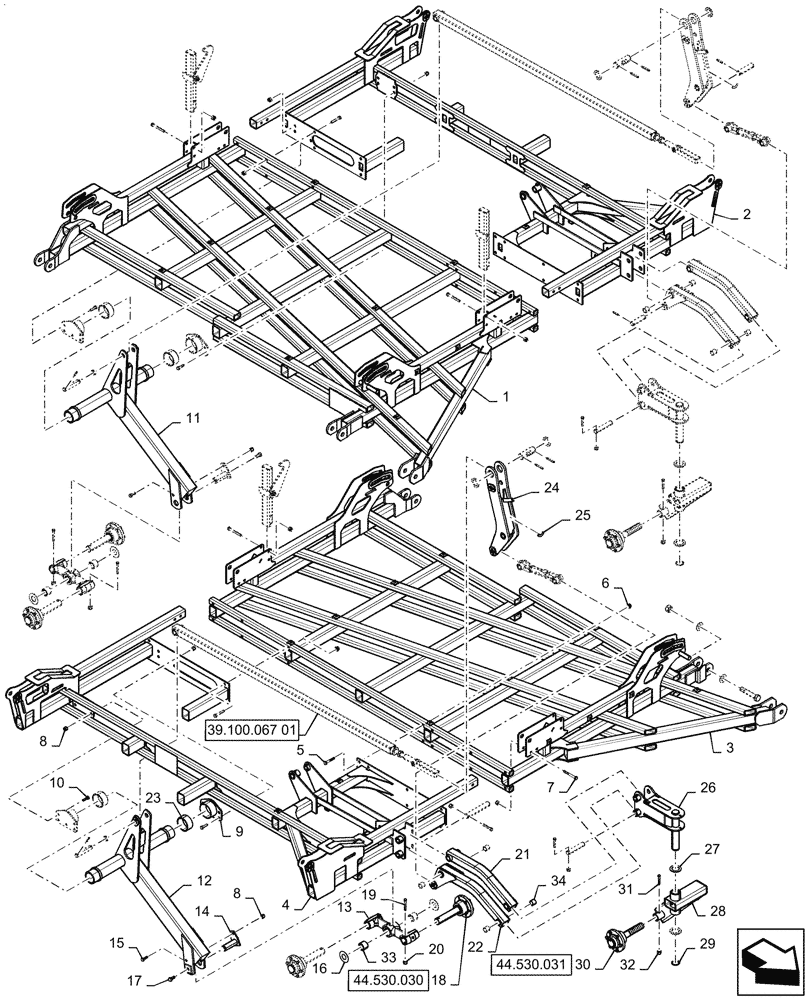

Запчасти Case IH TM255 (39.100.086) - INNER WING DOUBLE FOLD FLOATING HITCH 55/60 FOOT (39) - FRAMES AND BALLASTING

1

47772500

FRAME

Left Inner Wing Splice

1шт.

2

48035561

FRAME

Left Outer Wing Splice

1шт.

3

47772482

FRAME

Right Inner Wing Splice

1шт.

4

48035560

FRAME

Right Outer Wing Splice

1шт.

5

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

28шт.

6

84180923

FLANGE NUT

.325"

28шт.

7

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

8

85700693

NUT,5/8" - 11, Gr C

26шт.

9

47801178

SUPPORT

Rockshaft

1шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

11

47757280

FRAME

Left Wing Rockshaft

1шт.

12

47757281

FRAME

Right Wing Rockshaft

1шт.

13

47920071

CASTER

Walking Tandems

2шт.

14

47922232

PIN

1.75" Flag

2шт.

15

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

16

47733606

WASHER

1.75 ID x 3.75 OD

4шт.

17

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

18

47842667

HUB

6 Bolt 783

4шт.

19

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

20

88871

NUT,1/2"-13, GC

4шт.

21

47654836

LINKAGE

Upper Gauge Wheel

2шт.

22

47908170

LINKAGE

Lower Gauge Wheel

2шт.

23

47753605

BUSHING

Nylarton

1шт.

24

47755888

LINK BLOCK

Wing Rocker Pivot

2шт.

25

48040318

DECAL

Depth Adjustment

2шт.

26

47890562

BRACKET

Gauge Wheel

1шт.

27

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

2шт.

28

47890578

FRAME

Pivoting Gauge Wheel

1шт.

29

11069671

SNAP RING,M56, Ext

1шт.

30

28078350

HUB ASSY.

6 Bolt

1шт.

31

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

32

88871

NUT,1/2"-13, GC

1шт.

33

47771952

BUSHING

Tandem Castor

2шт.

34

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

4шт.
