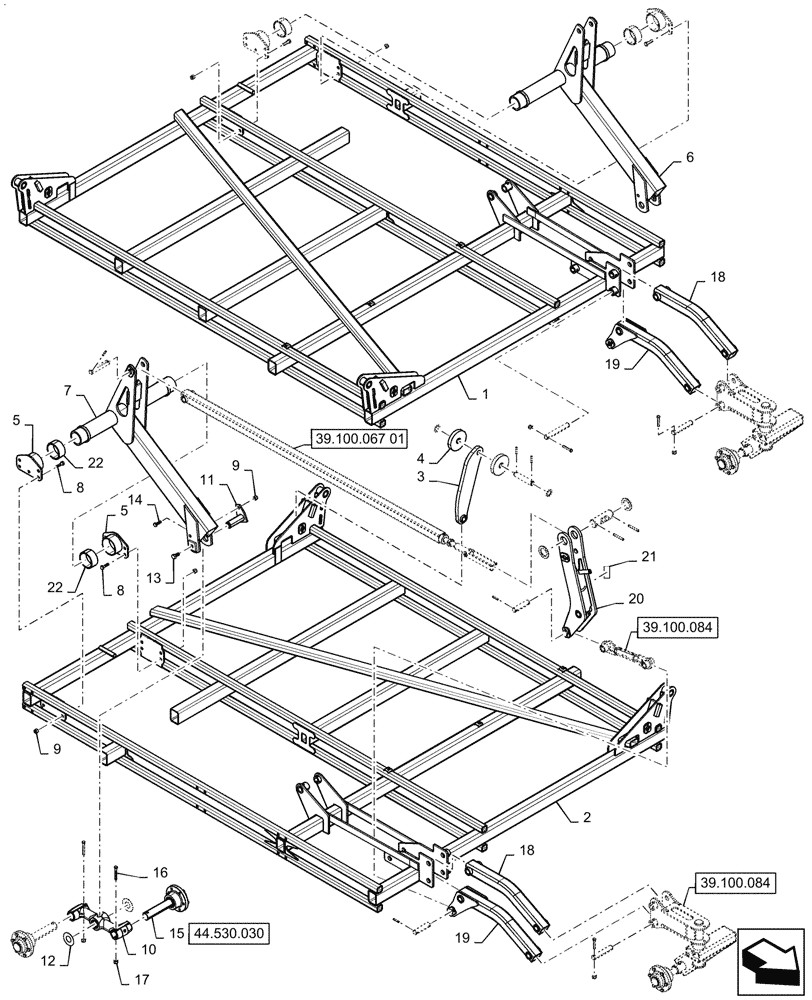

Запчасти Case IH TM255 (39.100.083) - OUTER WING DOUBLE FOLD FLOATING HITCH 55 (39) - FRAMES AND BALLASTING

1

47823057

FRAME

Outer Wing Left

1шт.

2

47823055

FRAME

Outer Wing Right

1шт.

3

47674815

LINKAGE

Outer Wing Fold

4шт.

4

84257918

ROLLER

Outer Wing

8шт.

5

47801178

SUPPORT

Rockshaft

1шт.

6

47757280

FRAME

Left Wing Rockshaft

1шт.

7

47757281

FRAME

Right Wing Rockshaft

1шт.

8

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

9

85700693

NUT,5/8" - 11, Gr C

18шт.

10

47920071

CASTER

Walking Tandem

2шт.

11

47922232

PIN

1.75" Flag

2шт.

12

47733606

WASHER

Nylon 1.75"

4шт.

13

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

14

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

15

47842667

HUB

6 Bolt 783

4шт.

16

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

17

88871

NUT,1/2"-13, GC

4шт.

18

47654836

LINKAGE

Upper Gauge

2шт.

19

47908170

LINKAGE

Lower Gauge

2шт.

20

47755888

LINK BLOCK

Wing Rocker

2шт.

21

48040318

DECAL

Depth Adjustment

2шт.

22

47753605

BUSHING

Nylarton

1шт.
