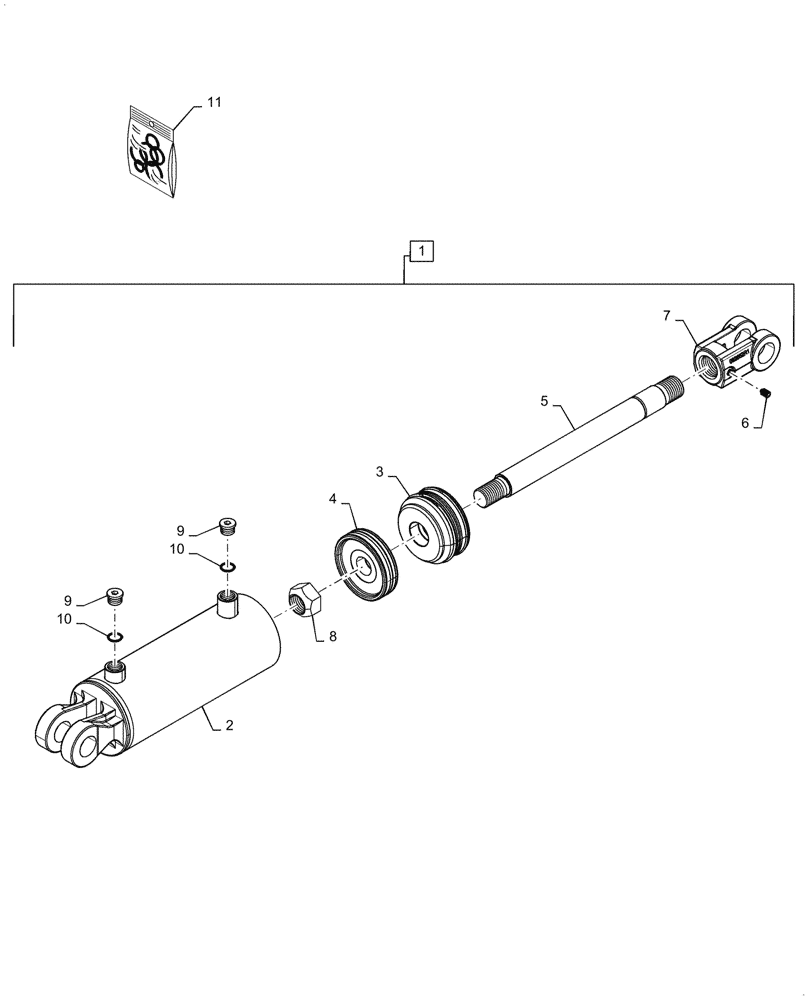

Запчасти Case IH TM255 (35.100.056) - HYDRAULIC CYLINDER FOLD 4.0 X 30" (35) - HYDRAULIC SYSTEMS

1

47820906

HYDRAULIC CYLINDER

Fold 4.0 x 30" Incl 2-10

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

3

47731137

CAP

Cylinder Head

1шт.

4

47638750

PISTON

Cylinder

1шт.

5

47811126

ROD

Cylinder

1шт.

6

84212867

SET SCREW

Hex

1шт.

7

47811113

ROD

Clevis

1шт.

8

87652886

NUT

Hex

1шт.

9

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

47638792

SEAL KIT

1шт.
