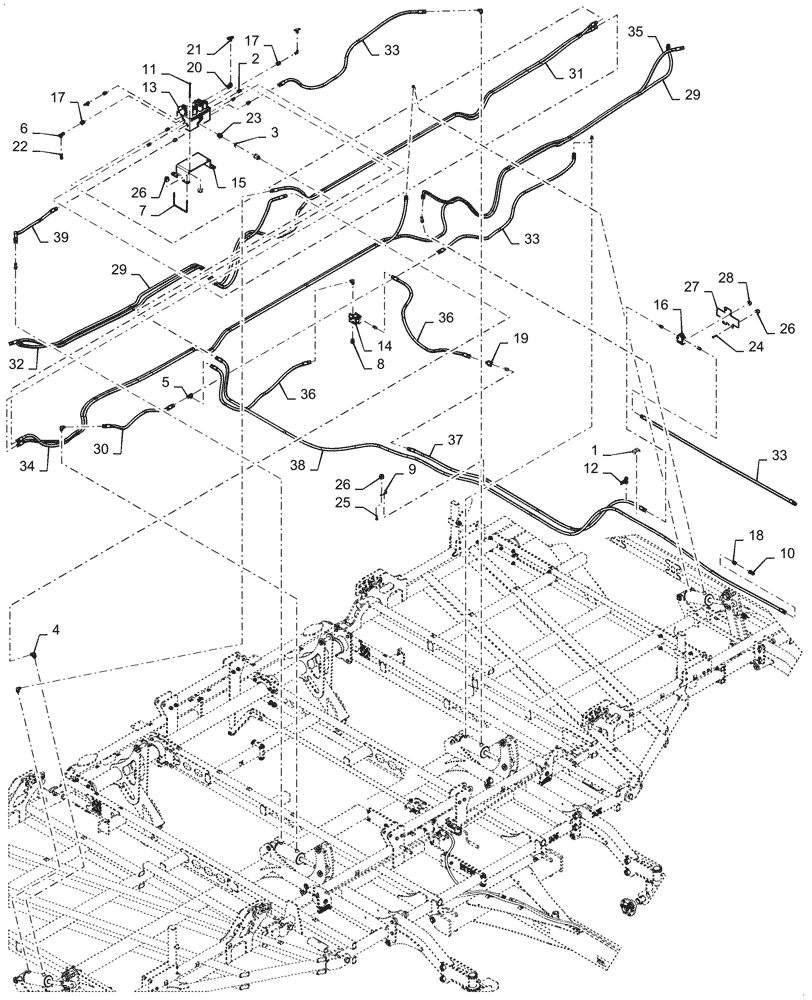

Запчасти Case IH TM255 (35.100.044) - HYDRAULIC LIFT 55/60 FOOT NARROW FLOATING HITCH (35) - HYDRAULIC SYSTEMS

1

06200125

HOSE CLAMP

2шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

6шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

6

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

7

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

2шт.

8

214389

PLUG,3/4" - 16 ORB

1шт.

9

22510710

HOSE CLAMP

1/2"

35шт.

10

25705041

COUPLING

3/4"

2шт.

11

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3шт.

12

327144A1

STRAP,328mm L

5шт.

13

47860862

VALVE BODY

Lift And Fold

1шт.

14

47937500

VALVE

SPDC

1шт.

15

47947233

MOUNT

Valve

1шт.

16

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

17

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

3шт.

18

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

19

84269593

FILTER

100 Micron

4шт.

20

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

21

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

22

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

23

87329794

FITTING

1/2" x 3/4"

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

32шт.

26

88902

NUT,3/8"-16

41шт.

27

47957771

PLATE

Valve Mount

1шт.

28

86992212

NUT

.313"

2шт.

29

1337361C1

HOSE ASSY.

.500 x 160"

2шт.

30

90878C1

HYDRAULIC HOSE

.500 x 39"

1шт.

31

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

.500 x 180"

1шт.

32

411929A1

HYDRAULIC HOSE

.500 x 330"

1шт.

33

195869C2

HYDRAULIC HOSE

.500 x 75"

3шт.

34

134208A1

HYDRAULIC HOSE,12.70 mm ID x 5460.00 mm

.500 x 215"

1шт.

35

295770A1

HOSE

.500 x 365"

1шт.

36

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

.500 x 65"

2шт.

37

91203C1

HOSE,12.70 mm ID x 3175.00 mm

.500 x 125"

1шт.

38

87537221

HYDRAULIC HOSE

.500 x 300"

1шт.

39

1960386C1

HYDRAULIC HOSE

.500 x 35"

1шт.
