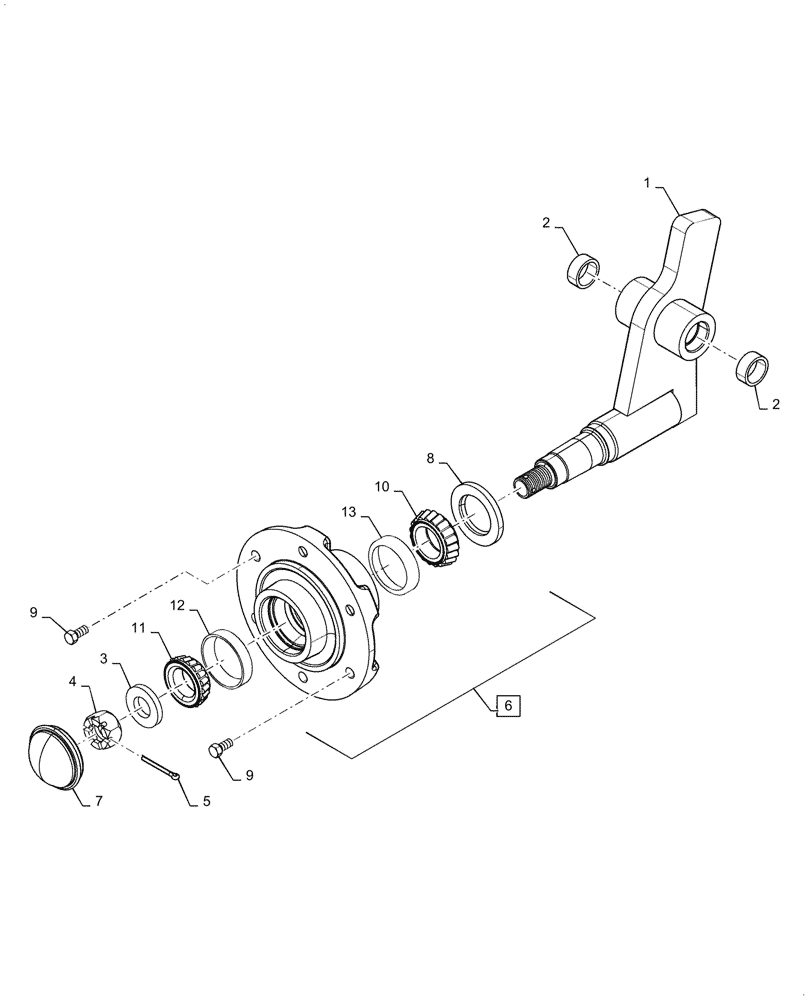

Запчасти Case IH TM255 (44.530.040) - GAUGE WHEEL HUB (44) - WHEELS

1

47522551

PIVOT

Gauge Wheel

1шт.

2

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

3

17915000

WASHER

Black

1шт.

4

84151573

NUT

Slotted nut 7/8"

1шт.

5

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

6

28270900

HUB ASSY.

With Cups Incl 12-13

1шт.

7

28477700

HUB CAP

CNH Black

1шт.

8

614410R91

SEAL

1.62"

1шт.

9

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

6шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

12

47404567

BEARING CUP

Outer

1шт.

13

47539802

BEARING CUP

Inner

1шт.
