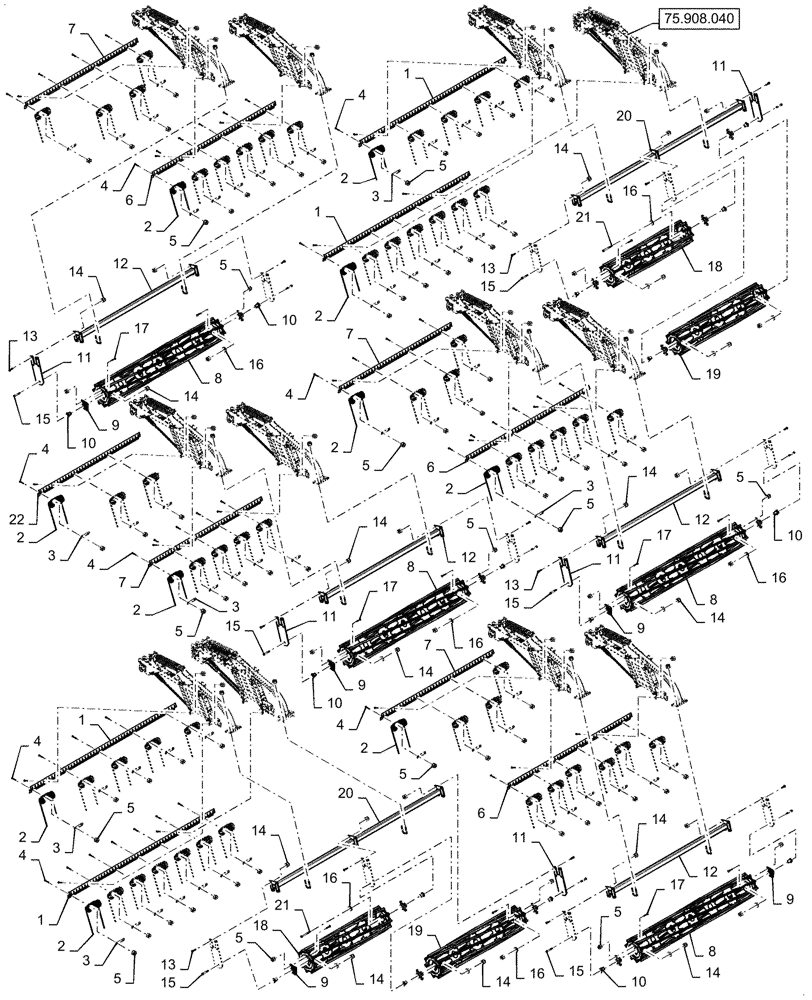

Запчасти Case IH TM255 (75.908.010) - ACS ROUND, 2 BAR COIL (75) - SOIL PREPARATION

1

47765837

CHANNEL,CHANNEL, TINE, 112.69 IN

Tine

4шт.

2

47559052

TINE

Spring

62шт.

3

47957741

CLAMP

Tine

62шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

124шт.

5

88871

NUT,1/2"-13, GC

188шт.

6

47746942

CHANNEL,CHANNEL, TINE, 95.35 IN

Tine

3шт.

7

47746955

CHANNEL,CHANNEL, TINE, 86.69 IN

Tine

4шт.

8

47916960

BASKET

4шт.

9

47451691

BEARING CONE

8шт.

10

47453057

SPINDLE

16шт.

11

47817917

PLATE

14шт.

12

47598753

TUBE

4шт.

13

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

48шт.

14

85700693

NUT,5/8" - 11, Gr C

70шт.

15

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

12шт.

16

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

16шт.

17

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

64шт.

18

84296836

BASKET

Round Tube, 67"

2шт.

19

47916958

Round Tube, 60"

TUBE

2шт.

20

47916984

Basket Mount, 127"

TUBE

2шт.

21

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

2шт.

22

47746951

CHANNEL,CHANNEL, TINE, 78.02 IN

Tine

1шт.
