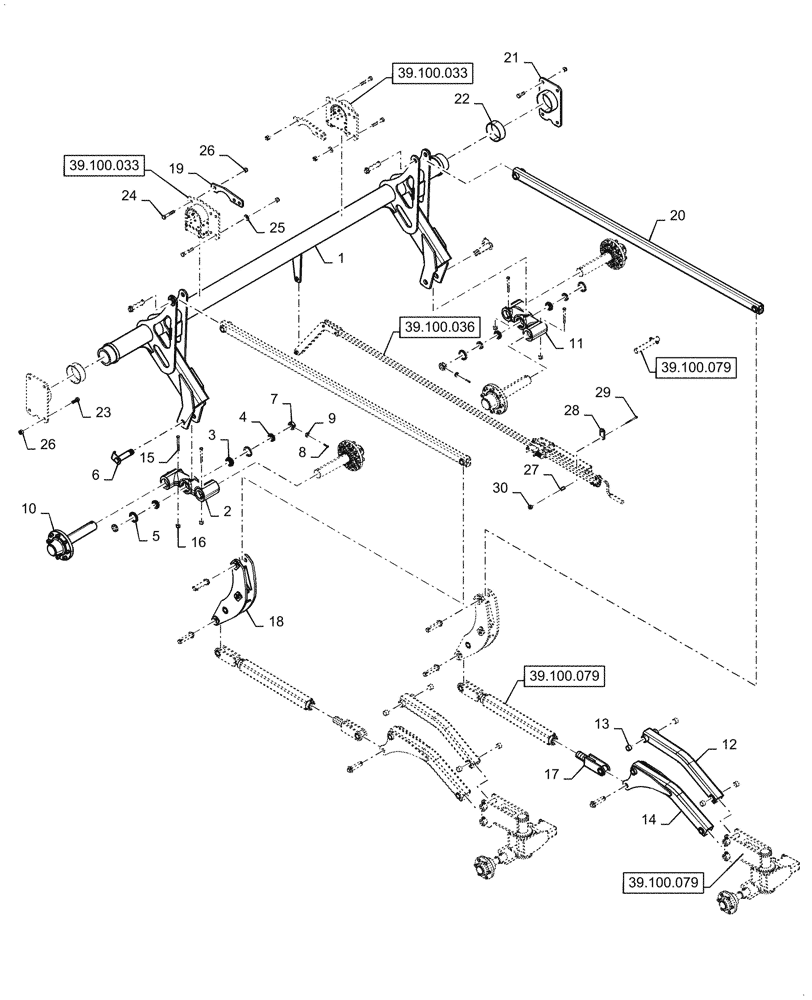

Запчасти Case IH TM255 (39.100.078) - MAIN FRAME LIFT SYSTEM 51,55,60 FLOATING HITCH (39) - FRAMES AND BALLASTING

1

47870615

FRAME

Rockshaft Main Frame

1шт.

2

47927135

CASTER

Right Tandem 2.75"

1шт.

3

84229861

BEARING

Roller

4шт.

4

84422537

SPACER

Bearing

4шт.

5

21932510

SEAL

Caster

4шт.

6

48027362

PIN

Axle

2шт.

7

14032409

NUT

Jam 1.5"

2шт.

8

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

2шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

10

47674585

HUB

8 Bolt With Spindle

4шт.

11

47927136

CASTER

Left Tandem 2.75"

1шт.

12

47751279

LINK

Upper gauge Wheel

2шт.

13

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

4шт.

14

47751310

LINKAGE

Lower GAuge Wheel

2шт.

15

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

16

88871

NUT,1/2"-13, GC

4шт.

17

47887068

ROD

1шт.

18

47919227

LINKAGE

Rocker Pivot

2шт.

19

47761287

PLATE

Rockshaft Backer

2шт.

20

47756054

LINKAGE

Main Frame Lift Rear

2шт.

21

47861175

SUPPORT

Rockshaft

1шт.

22

47753584

BUSHING

Nylatron

1шт.

23

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

8шт.

24

280210

BOLT,Hex, 3/4"-10 x 4", G5

12шт.

25

84156178

WASHER,0.78" ID x 1.75" OD x 0.18" Thk

6шт.

26

280375

NUT,3/4"-10, GC

20шт.

27

47432711

SPACER

SPDC

2шт.

28

47432658

GUIDE

Bracket

1шт.

29

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

30

280736

NUT,5/16"-18, GC

2шт.
