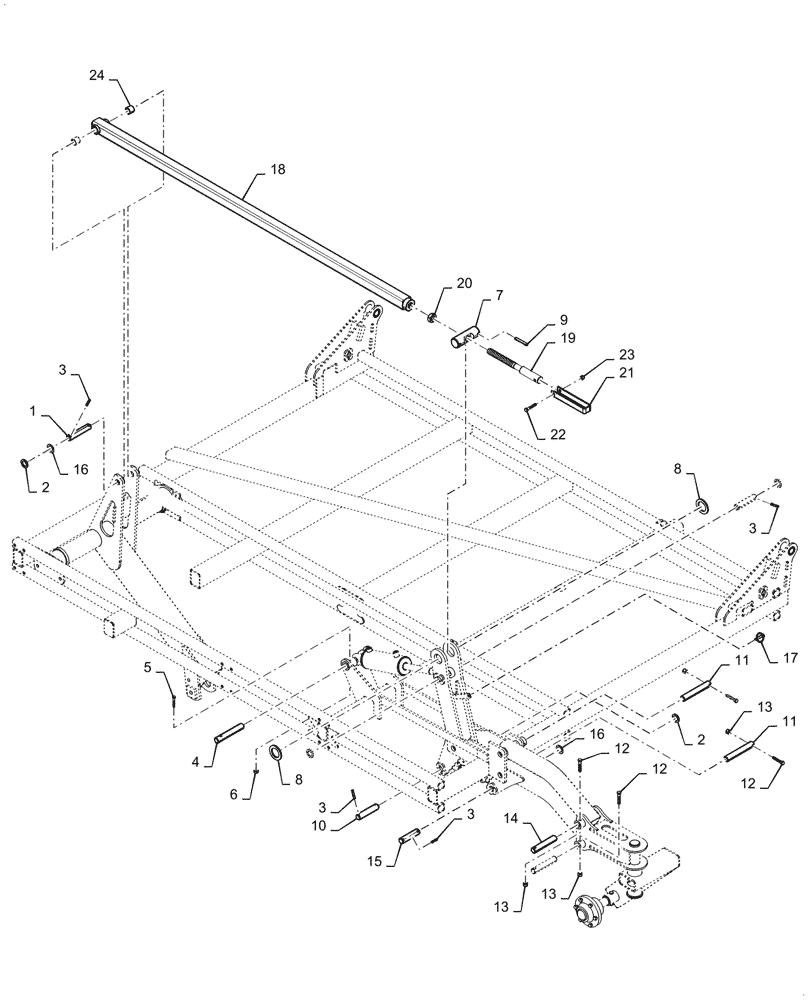

Запчасти Case IH TM255 (39.100.076) - OUTER WING DOUBLE FOLD 51 FOOT FLOATING HITCH CONTINUED (39) - FRAMES AND BALLASTING

1

47922237

PIN

1.25 x 6.53"

2шт.

2

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

3

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

16шт.

4

47922250

PIN

1.25 x 8.00"

2шт.

5

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

6

86992213

NUT

.375"

2шт.

7

47893469

BRACKET

2.25" Dia

2шт.

8

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

4шт.

9

84323489

ROLL PIN

.500 x 3.5"

4шт.

10

47922245

PIN

1.25 x 5.98"

4шт.

11

84370832

PIN

1.25 x 8.25"

6шт.

12

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

10шт.

13

88871

NUT,1/2"-13, GC

1/2"

10шт.

14

84142649

PIN

Gauge Wheel

4шт.

15

47922233

PIN

1.25 x 5.27"

2шт.

16

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

17

D33805

PIN

Klik

2шт.

18

47801282

LINKAGE

Wing Lift Rear Adjust

1шт.

19

47879360

SCREW

Depth Adjustment

1шт.

20

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

21

06400160

CRANKED HANDLE

Depth Adjustment

1шт.

22

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

23

88871

NUT,1/2"-13, GC

1шт.

24

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

2шт.
