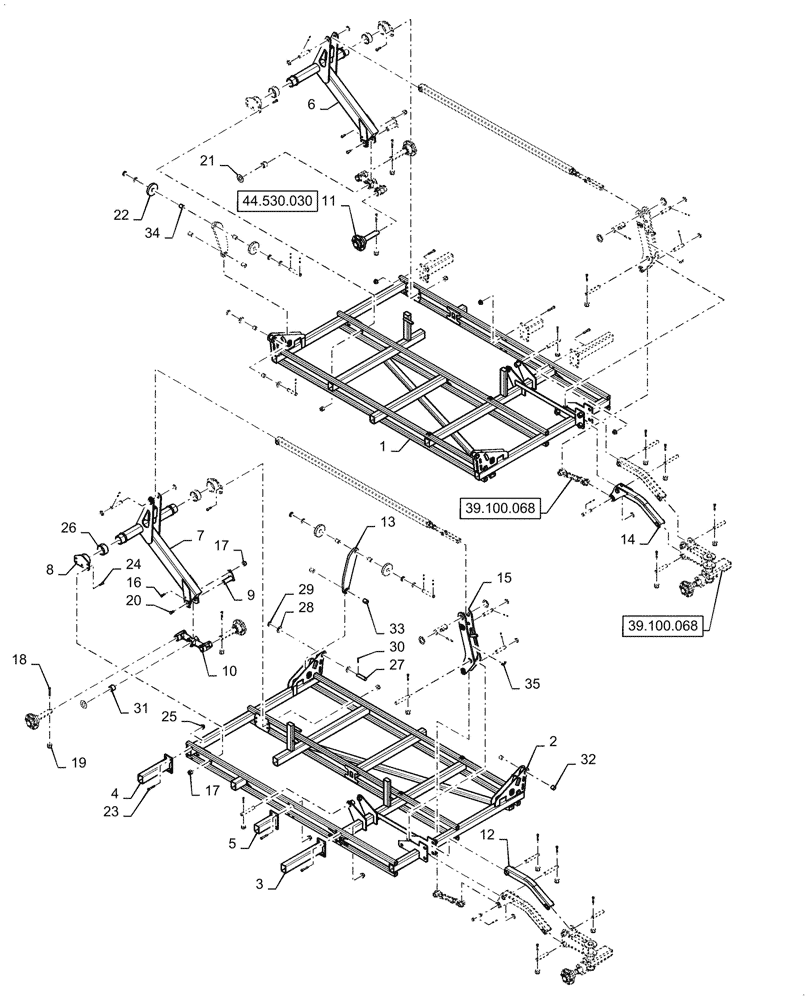

Запчасти Case IH TM255 (39.100.075) - OUTER WING DOUBLE FOLD 51 FOOT FLOATING HITCH (39) - FRAMES AND BALLASTING

1

47782607

FRAME

Left Outer Wing

1шт.

2

47782606

FRAME

Right Outer Wing

1шт.

3

47796613

TUBE

23.5" Stub

2шт.

4

47873862

TUBE

17" Stub

2шт.

5

47796614

TUBE

10.75" Stub

2шт.

6

47757280

FRAME

Left Rockshaft

1шт.

7

47757281

FRAME

Right Rockshaft

1шт.

8

47801178

SUPPORT

Rockshaft

1шт.

9

47922232

PIN

Flag

2шт.

10

47920071

CASTER

Walking Tandem

2шт.

11

47842667

HUB

6 Bolt 783

4шт.

12

47654836

LINKAGE

Upper Gauge

2шт.

13

47674815

LINKAGE

Fold

2шт.

14

47908170

LINKAGE

Lower

2шт.

15

47755888

LINK BLOCK

Wing Rocker Pivot

2шт.

16

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

17

85700693

NUT,5/8" - 11, Gr C

18шт.

18

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

19

88871

NUT,1/2"-13, GC

4шт.

20

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

21

47733606

WASHER

1.75" ID 3.75" OD

4шт.

22

84257918

ROLLER

Outer Wing

4шт.

23

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

24шт.

24

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

25

84180923

FLANGE NUT

24шт.

26

47753605

BUSHING

Nylatron

1шт.

27

47922233

PIN

wing Lift Rear Adjust

4шт.

28

47733622

WASHER

Depth Adjustment

8шт.

29

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

30

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

Depth Adjust

8шт.

31

47771952

BUSHING

1.75 ID x 2.38 OD

1шт.

32

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

1шт.

33

47675936

BUSHING

1.25 ID x 1.50 OD

1шт.

34

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

1шт.

35

48040318

DECAL

Depth Control

1шт.
