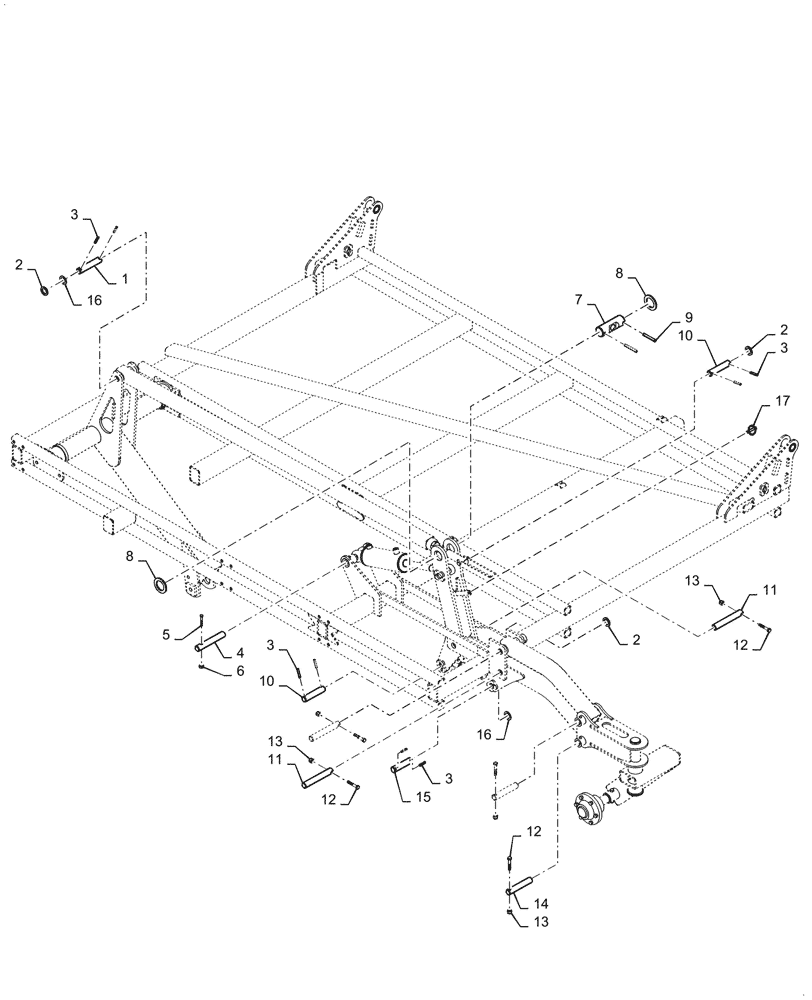

Запчасти Case IH TM255 (39.100.075[01]) - PINS OUTER WING DOULBE FOLD 51 FOOT FLOATING HITCH (39) - FRAMES AND BALLASTING

1

47922237

PIN

1.25 x 6.53"

2шт.

2

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

3

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

16шт.

4

47922250

PIN

1.25 x 8.00"

2шт.

5

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

6

86992213

NUT

.375"

2шт.

7

47893469

BRACKET

2.25"

2шт.

8

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

4шт.

9

84323489

ROLL PIN

Spring

4шт.

10

47922245

PIN

1.25 x 5.98"

4шт.

11

84370832

PIN

1.25 x 8.25"

6шт.

12

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

10шт.

13

88871

NUT,1/2"-13, GC

10шт.

14

84142649

PIN

Gauge Wheel

4шт.

15

47922233

PIN

1.25 x 5.27"

2шт.

16

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

17

D33805

PIN

2шт.
