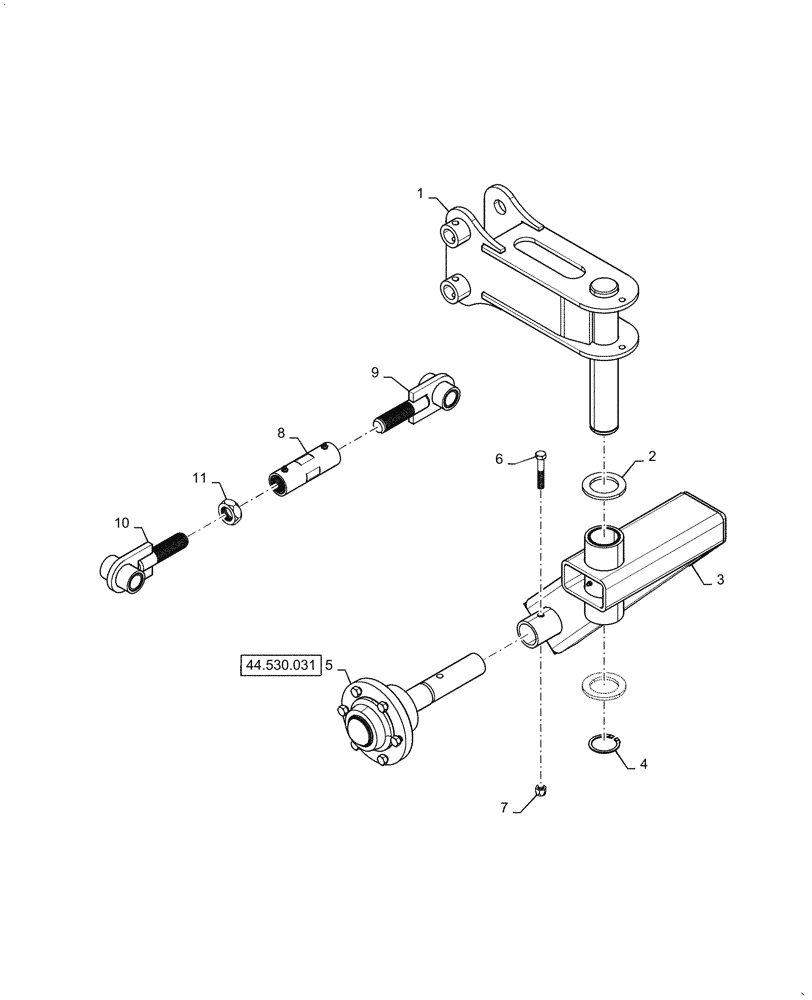

Запчасти Case IH TM255 (39.100.068) - OUTER WING DOUBLE FOLD 46 FOOT FLOATING HITCH CONTINUED (39) - FRAMES AND BALLASTING

1

47890562

BRACKET

Gauge Wheel

1шт.

2

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

2шт.

3

47890578

FRAME

Pivoting Gauge Wheel

1шт.

4

11069671

SNAP RING,M56, Ext

56 mm

1шт.

5

28078350

HUB ASSY.

With Spindle

1шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

7

88871

NUT,1/2"-13, GC

1шт.

8

47930662

BODY

Turnbuckle

1шт.

9

47930724

ROD

Left Clevis Turnbuckle

1шт.

10

47930720

ROD

Right Clevis Turnbuckle

1шт.

11

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

12

48039999

DECAL

Depth Control

1шт.
