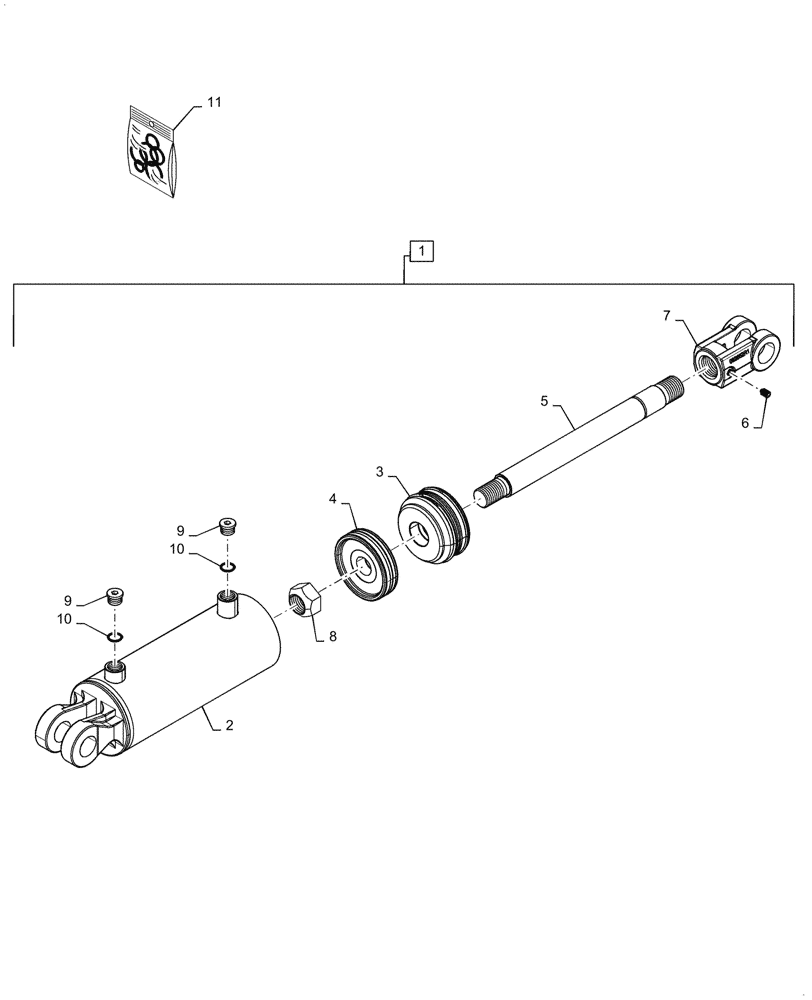

Запчасти Case IH TM255 (35.100.061) - HYDRAULIC CYLINDER 4.5 X 8 WITH 1.50 CHROME ROD (35) - HYDRAULIC SYSTEMS

1

47719415

HYDRAULIC CYLINDER

4.5 x 8 With 1.50 Chrome Rod Incl 2-10

1шт.

2

47639370

TUBE

Weldment

1шт.

3

47639374

CAP

Cylinder Head

1шт.

4

47638820

PISTON

4.50-1.250"

1шт.

5

47639394

ROD WIPER

1.50-08-1.25-1.50

1шт.

6

84212867

SET SCREW

3/8"

1шт.

7

47638754

ROD

Clevis

1шт.

8

87023139

NUT

1-1/4"

1шт.

9

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

47638830

SEAL KIT

1шт.
