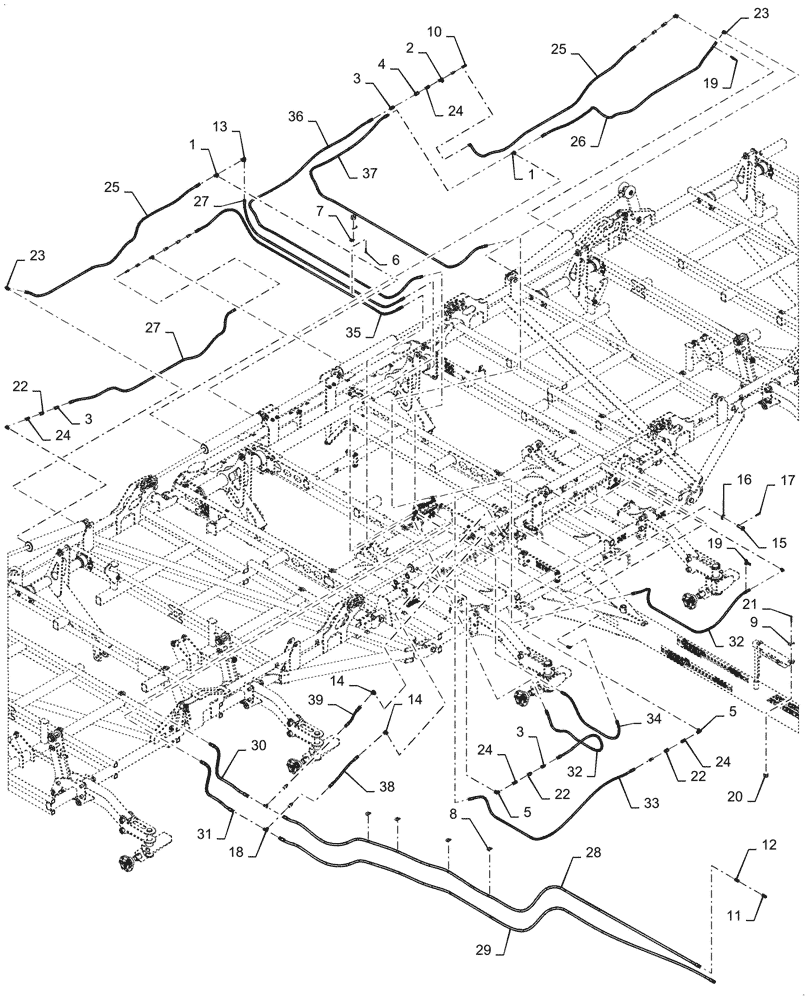

Запчасти Case IH TM255 (35.100.041) - HYDRAULICS NRRW LIFT 51 FOOT FLOATING HITCH (35) - HYDRAULIC SYSTEMS

1

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

2

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

3

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

10шт.

4

25405015

CONTROL VALVE

Brown

2шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

7

22510700

HOSE CLAMP,15.86mm

18шт.

8

22510710

HOSE CLAMP

3/4"

6шт.

9

06200125

HOSE CLAMP

2шт.

10

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

11

25705041

COUPLING

3/4"

2шт.

12

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

15

87023161

HEADED PIN,1" x 3"

1шт.

16

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

17

88182

COTTER PIN,1/4" OD x 2" L

2шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

19

327144A1

STRAP,328mm L

7шт.

20

88902

NUT,3/8"-16

16шт.

21

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

22

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

4шт.

23

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

24

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

25

1301350C2

HYDRAULIC HOSE

.375 x 120"

2шт.

26

139654C2

HYDRAULIC HOSE

.375 x 125"

1шт.

27

812381C2

HYDRAULIC HOSE

.375 x 115"

2шт.

28

87655965

HYDRAULIC HOSE

.500 x 260"

1шт.

29

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

.500 x 265"

1шт.

30

90878C1

HYDRAULIC HOSE

.500 x 39"

1шт.

31

1304245C2

HYDRAULIC HOSE

.500 x 37"

1шт.

32

195504C2

HYDRAULIC HOSE

.375x 80"

2шт.

33

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

.375 x 110"

1шт.

34

1285380C2

HYDRAULIC HOSE

.375 x 50"

1шт.

35

1284252C1

HYDRAULIC HOSE

.375 x 140"

1шт.

36

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

.375 x 195"

1шт.

37

1284254C1

HYDRAULIC HOSE

.375 x 170"

1шт.

38

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

.375 x 21"

1шт.

39

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

.375 x 17"

1шт.
