Запчасти Case IH TM255 (35.100.040) - HYDRAULIC LIFT 51 FOOT NARROW FLOATING HITCH (35) - HYDRAULIC SYSTEMS

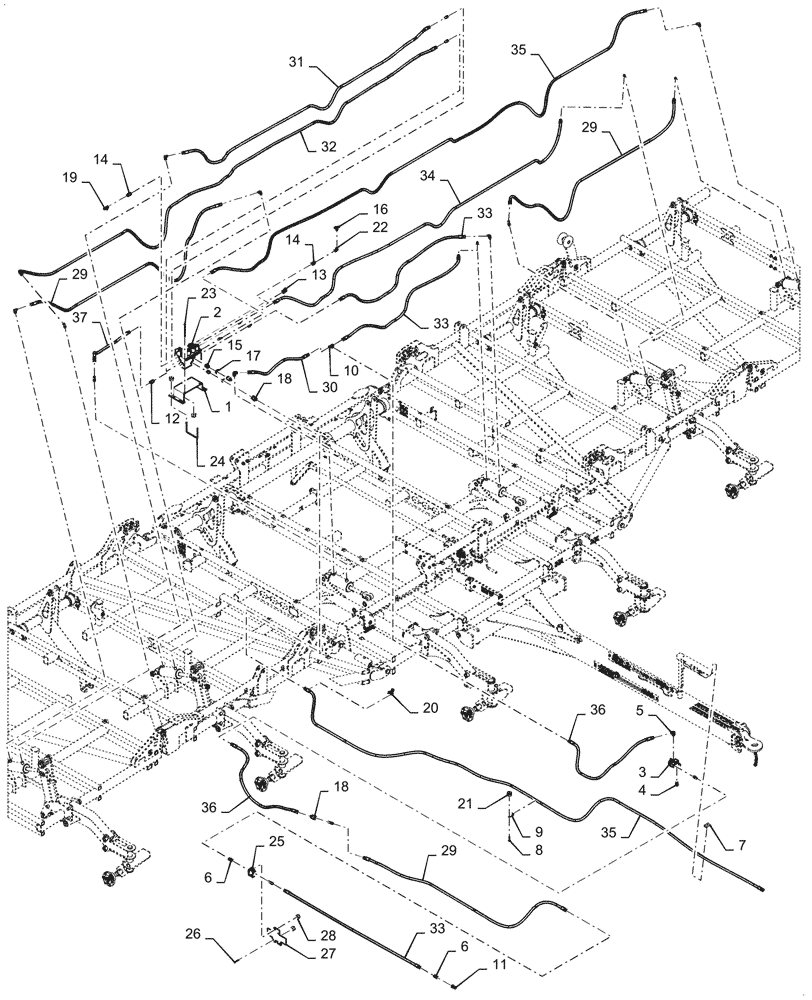

Схема запчастей Case IH TM255 - (35.100.040) - HYDRAULIC LIFT 51 FOOT NARROW FLOATING HITCH (35) - HYDRAULIC SYSTEMS
22
29
6
23
9
18
20
28
33
37
35
7
5
6
30
8
27
34
29
36
35
15
33
25
14
3
17
16
19
24
12
32
14
10
29
26
2
13
18
21
33
4
1
31
36
11

Артикул

Название

Примечание

Количество

1

47947233

MOUNT

PTD Valve

1шт.

2

47860862

VALVE BODY

Lift And Fold

1шт.

3

47937500

VALVE

SPDC

1шт.

4

214389

PLUG,3/4" - 16 ORB

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

6

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

7

06200125

HOSE CLAMP

2шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

24шт.

9

22510710

HOSE CLAMP

1/2"

27шт.

10

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

11

25705041

COUPLING

3/4"

2шт.

12

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

6шт.

13

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

14

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

3шт.

15

87329794

FITTING

1/2" x 3/4"

3шт.

16

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

18

84269593

FILTER

100 Micron

4шт.

19

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

20

327144A1

STRAP,328mm L

5шт.

21

88902

NUT,3/8"-16

33шт.

22

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

23

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3шт.

24

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

2шт.

25

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

47957771

PLATE

Valve Mount

1шт.

28

86992212

NUT

.313"

2шт.

29

91203C1

HOSE,12.70 mm ID x 3175.00 mm

.500 x 125"

3шт.

30

90878C1

HYDRAULIC HOSE

.500 x 39"

1шт.

31

134212A1

HOSE

.500 x 150"

1шт.

32

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

.500 x 265"

1шт.

33

195869C2

HYDRAULIC HOSE

.500 x 75"

3шт.

34

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

.500 x 190"

1шт.

35

87537221

HYDRAULIC HOSE

.500 x 300"

2шт.

36

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

.500 x 65"

2шт.

37

1960386C1

HYDRAULIC HOSE

.500 x 35"

1шт.

Выбрано товаров: 37
