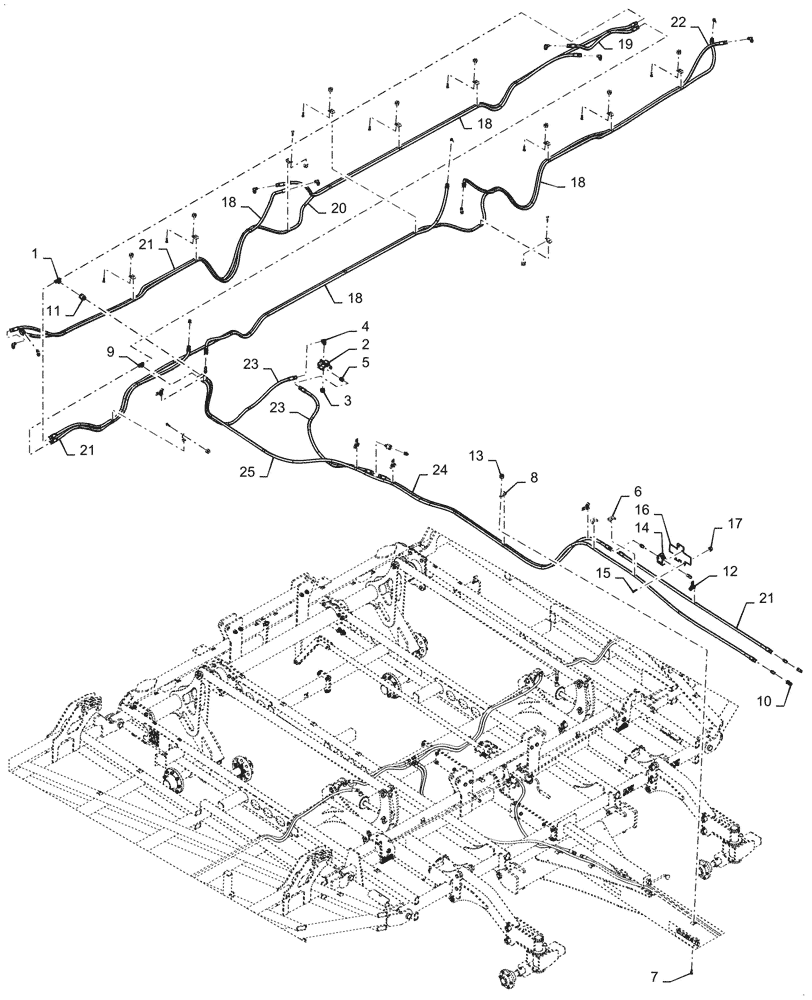

Запчасти Case IH TM255 (35.100.036) - HYDRAULICS LIFT 55/60 FOOT FLOATING HITCH (35) - HYDRAULIC SYSTEMS

1

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

2

47937500

VALVE

SPDC

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

6

06200125

HOSE CLAMP

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

32шт.

8

22510710

HOSE CLAMP

3/4"

32шт.

9

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

25705041

COUPLING

2шт.

11

84269593

FILTER

100 Micron

2шт.

12

327144A1

STRAP,328mm L

5шт.

13

88902

NUT,3/8"-16

34шт.

14

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

47957771

PLATE

Shut Off

1шт.

17

86992212

NUT

.313"

2шт.

18

1337361C1

HOSE ASSY.

.500 x 160"

4шт.

19

90878C1

HYDRAULIC HOSE

.500 x 39"

1шт.

20

411929A1

HYDRAULIC HOSE

.500 x 330"

1шт.

21

195869C2

HYDRAULIC HOSE

.500 x 75"

2шт.

22

87537225

HOSE

.500 x 390"

1шт.

23

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

.500" x 65"

2шт.

24

91203C1

HOSE,12.70 mm ID x 3175.00 mm

.500 x 125"

1шт.

25

87537221

HYDRAULIC HOSE

.500 x 300"

1шт.
