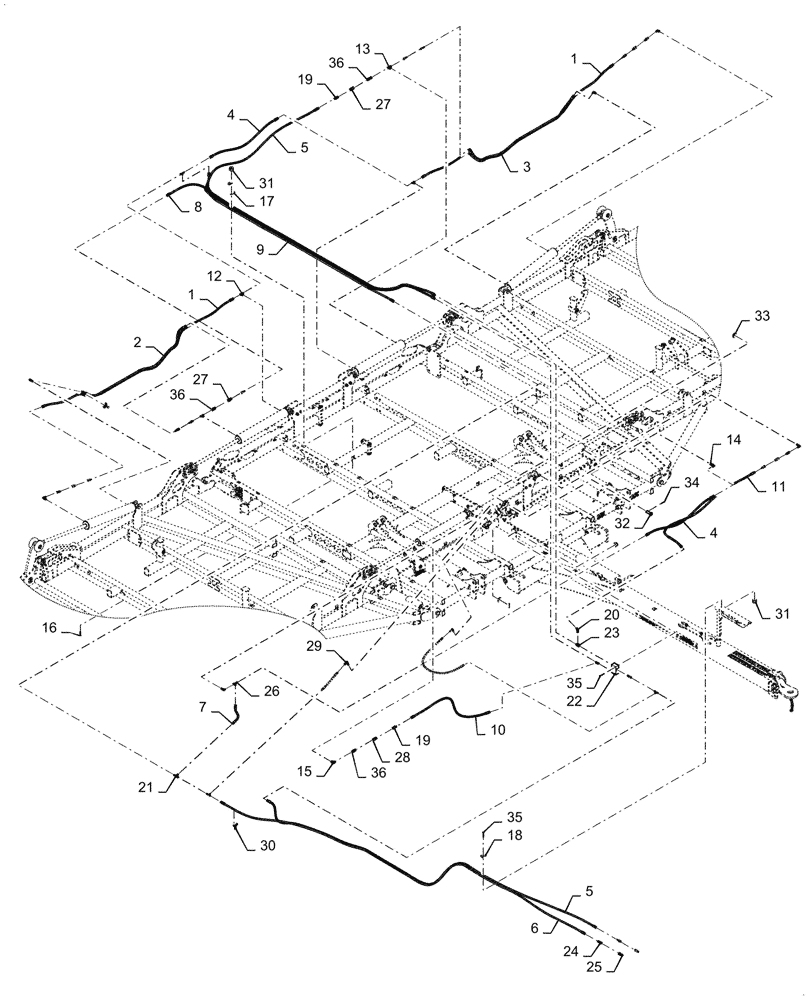

Запчасти Case IH TM255 (35.100.033) - HYDRAULIC STD LIFT 51 FOOD FLOATING HITCH (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
1301350C2
HYDRAULIC HOSE
.375 x 120"
2шт.
2
812381C2
HYDRAULIC HOSE
.375 x 115"
1шт.
3
139654C2
HYDRAULIC HOSE
.375 x 125"
1шт.
4
1285380C2
HYDRAULIC HOSE
.375 x 50"
3шт.
5
1284292C1
HYDRAULIC HOSE
.375 x 245"
2шт.
6
133933C2
HYDRAULIC HOSE
.375 x 260"
1шт.
7
598931R91
HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1
.375 x 17"
2шт.
8
1284255C1
HYDRAULIC HOSE,9.53mm ID x 4700mm L
.375 x 185"
1шт.
9
1284253C1
HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm
.375 x 150"
1шт.
10
1254574C2
HYDRAULIC HOSE
.375 x 60"
1шт.
11
195504C2
HYDRAULIC HOSE
.375 x 80"
1шт.
12
87331046
TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC
2шт.
14
76347
ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB
4шт.
15
128830
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
4шт.
16
88682
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
12шт.
17
22510700
HOSE CLAMP,15.86mm
24шт.
18
06200125
HOSE CLAMP
2шт.
19
86624135
REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male
8шт.
20
86512959
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
3шт.
21
76355
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
1шт.
22
25401258
DIVIDER ASSY.
Valve
1шт.
23
87564739
TEE
3/8" x 1/2" x 3/8"
2шт.
25
25705041
COUPLING
3/4"
2шт.
26
129274
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
4шт.
27
25405013
CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC
Purple
4шт.
28
25405015
CONTROL VALVE
Brown
2шт.
30
327144A1
STRAP,328mm L
10шт.
31
88902
NUT,3/8"-16
17шт.
32
87023161
HEADED PIN,1" x 3"
1шт.
33
86624170
WASHER,1.03" ID x 1.5" OD x 0.12" Thk
2шт.
34
88182
COTTER PIN,1/4" OD x 2" L
2шт.
35
88444
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
5шт.
Выбрано товаров: 36
