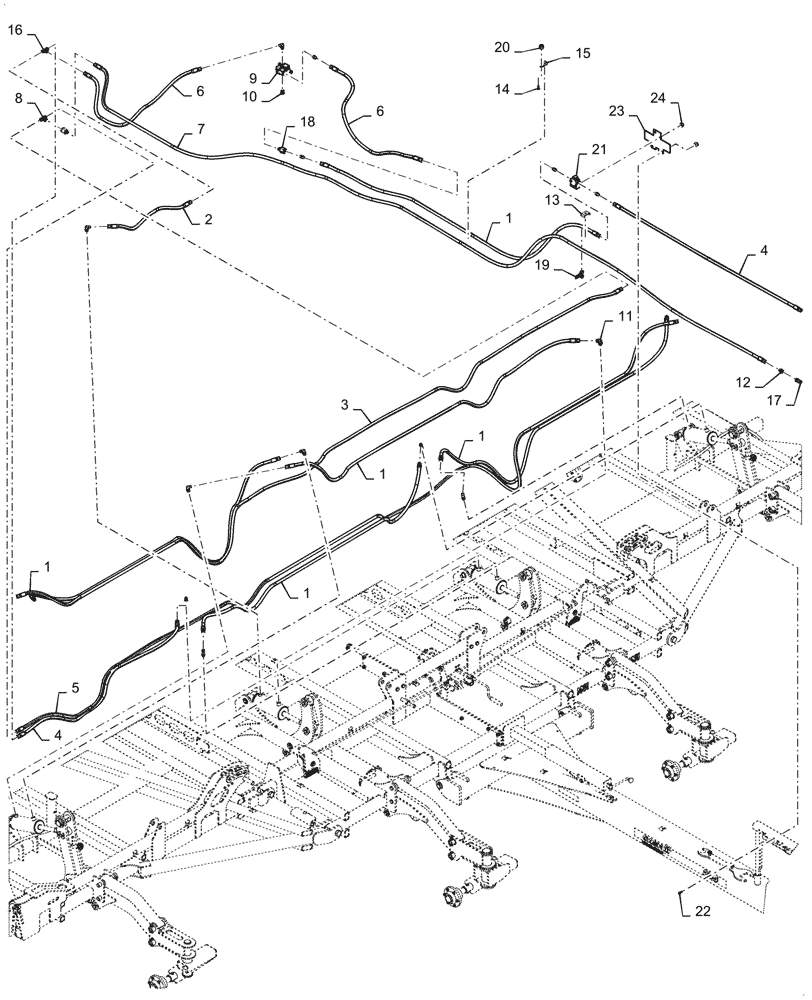

Запчасти Case IH TM255 (35.100.032) - HYDRAULICS STD LIFT 51 FOOT FLOATING HITCH (35) - HYDRAULIC SYSTEMS

1

91203C1

HOSE,12.70 mm ID x 3175.00 mm

.500 x 125"

5шт.

2

90878C1

HYDRAULIC HOSE

.500 x 39"

1шт.

3

1337374C1

HYDRAULIC HOSE

.500 x 270"

1шт.

4

195869C2

HYDRAULIC HOSE

.500 x 75"

2шт.

5

245606A1

HYDRAULIC HOSE

.500 x 310"

1шт.

6

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

.500 x 65"

2шт.

7

87537221

HYDRAULIC HOSE

.500 x 300"

1шт.

8

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

47937500

VALVE

SPDC

1шт.

10

214389

PLUG,3/4" - 16 ORB

1шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

12

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

13

06200125

HOSE CLAMP

2шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

24шт.

15

22510710

HOSE CLAMP

1/2"

25шт.

16

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

17

25705041

COUPLING

3/4"

2шт.

18

84269593

FILTER

100 Micron

2шт.

19

327144A1

STRAP,328mm L

5шт.

20

88902

NUT,3/8"-16

26шт.

21

87328528

SHUT-OFF VALVE

1шт.

22

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

47957771

PLATE

With Decals

1шт.

24

86992212

NUT

.313

2шт.
