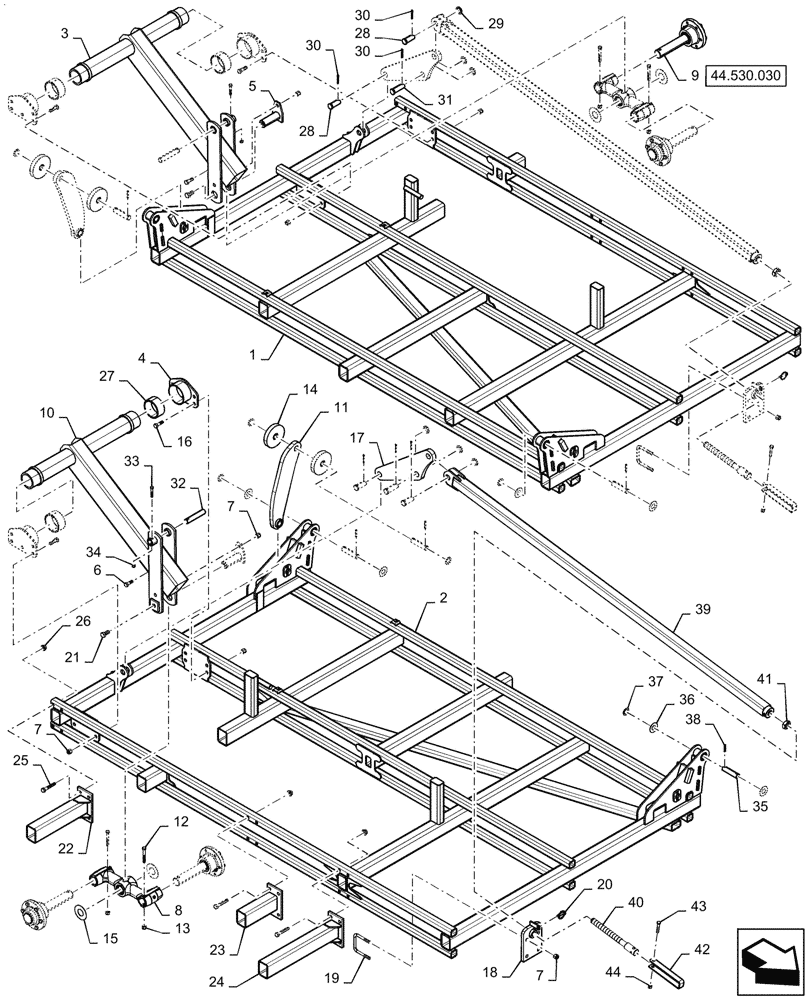

Запчасти Case IH TM255 (39.100.072) - OUTER WING DOUBLE FOLD PULL HITCH 51 FOOT (39) - FRAMES AND BALLASTING

1

47776938

FRAME

Left Outer Wing

1шт.

2

47776936

FRAME

Right Outer Wing

1шт.

3

47795651

FRAME

Left Wing Rockshaft

1шт.

4

47801178

SUPPORT

Rockshaft

1шт.

5

47922232

PIN

Flag

2шт.

6

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

7

85700693

NUT,5/8" - 11, Gr C

26шт.

8

47920071

CASTER

Walking Tandem

2шт.

9

47842667

HUB

6 Bolt 783

4шт.

10

47795652

FRAME

Right Wing Rockshaft

1шт.

11

47674815

LINKAGE

Wing Fold

2шт.

12

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

13

88871

NUT,1/2"-13, GC

4шт.

14

84257918

ROLLER

Outer Wing

4шт.

15

47733606

WASHER

1.75" ID 3.75 OD

4шт.

16

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

17

47776477

PLATE

Wing Rocker

2шт.

18

48032903

PLATE

Pin

2шт.

19

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

4шт.

20

D33805

PIN

.750 x .50"

2шт.

21

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

22

47873862

TUBE

17" Stub

2шт.

23

47796614

TUBE

10.75" Stub

2шт.

24

47796613

TUBE

23.5" Stub

2шт.

25

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

24шт.

26

84180923

FLANGE NUT

24шт.

27

47753605

BUSHING

Nylatron

1шт.

28

84156992

PIN

Clevis 1.25 x 3.00"

4шт.

29

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

30

88182

COTTER PIN,1/4" OD x 2" L

6шт.

31

84156994

CLEVIS PIN

1.250 x 3.75"

2шт.

32

47922239

PIN

1.25" x 6.57"

2шт.

33

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

34

88871

NUT,1/2"-13, GC

2шт.

35

47922233

PIN

1.25 x 5.27"

4шт.

36

47733622

WASHER

1.25 ID x 2.75" OD

8шт.

37

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

38

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

8шт.

39

47879139

TUBE

Wing Adjustment Link

1шт.

40

47880190

SCREW

Depth Adjustment

1шт.

41

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

42

06400160

CRANKED HANDLE

Depth Adjustment

1шт.

43

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

44

88871

NUT,1/2"-13, GC

1шт.

45

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

1шт.
