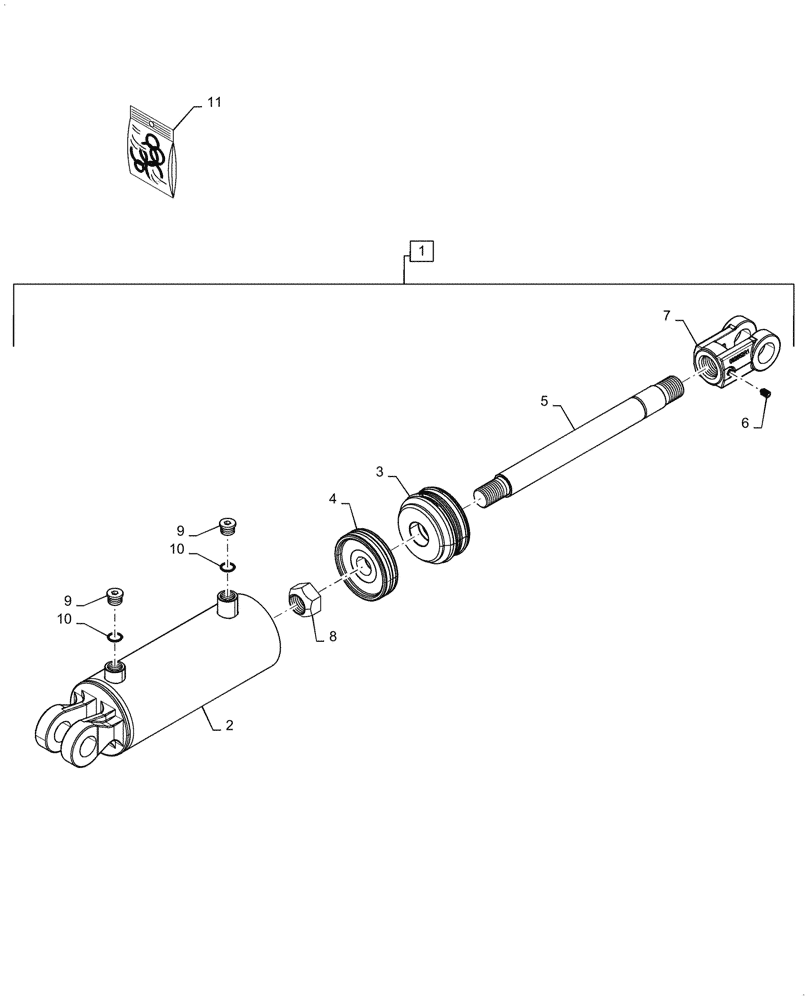

Запчасти Case IH TM255 (35.100.055) - HYDRAULIC FOLD CYLINDER 2.0 X 4"WITH 1.13 CHROME ROD (35) - HYDRAULIC SYSTEMS

1

47719381

HYDRAULIC CYLINDER

Fold Cylinder 2.0 x 4"With 1.13 Chrome Rod Incl 2-10

1шт.

2

47639442

TUBE

Cylinder

1шт.

3

47731142

HYDRAULIC CYLINDER

Head

1шт.

4

47639453

PISTON

Cylinder

1шт.

5

47639457

ROD

Cylinder

1шт.

6

84212867

SET SCREW

Hex

1шт.

7

47639465

ROD

Clevis

1шт.

8

87021832

LOCK NUT,3/4"-16, GC

1шт.

9

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

47466076

SEAL KIT

1шт.
