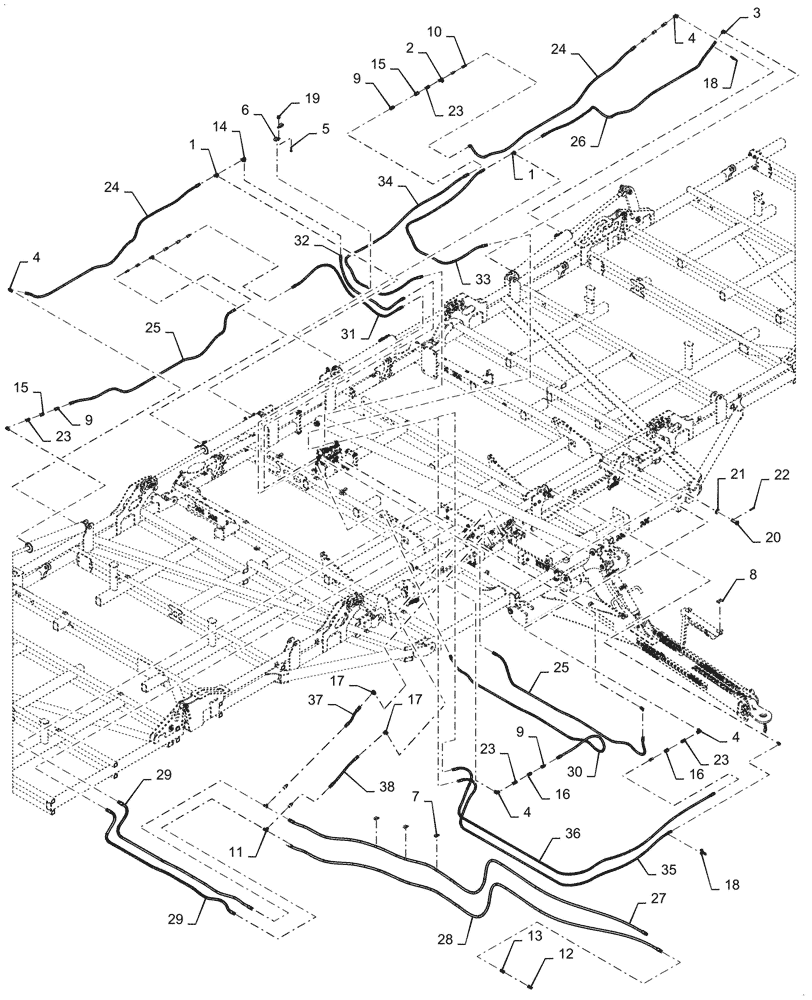

Запчасти Case IH TM255 (35.100.039) - HYDRAULIC FOLD 51 FOOT NARROW CONSTANT LEVEL HITCH (35) - HYDRAULIC SYSTEMS

1

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

2

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

3

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

5

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

6

22510700

HOSE CLAMP,15.86mm

16шт.

7

22510710

HOSE CLAMP

3/4"

7шт.

8

06200125

HOSE CLAMP

2шт.

9

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

10шт.

10

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

11

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

12

25705041

COUPLING

3/4"

2шт.

13

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

15

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

4шт.

16

25405015

CONTROL VALVE

Brown

2шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

18

327144A1

STRAP,328mm L

10шт.

19

88902

NUT,3/8"-16

8шт.

20

87023161

HEADED PIN,1" x 3"

1шт.

21

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

22

88182

COTTER PIN,1/4" OD x 2" L

2шт.

23

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

24

1301350C2

HYDRAULIC HOSE

.375 x 120"

2шт.

25

812381C2

HYDRAULIC HOSE

.375 x 115"

2шт.

26

139654C2

HYDRAULIC HOSE

.375 x 125"

1шт.

27

134214A1

HOSE

.500 x 230"

1шт.

28

1978106C1

HOSE

.500 x 240"

1шт.

29

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

.500 x 110"

2шт.

30

1284252C1

HYDRAULIC HOSE

.375 x 140"

1шт.

31

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

.375 x 75"

1шт.

32

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

.375 x 55"

1шт.

33

129671C2

HYDRAULIC HOSE

.375 x 105"

1шт.

34

1284369C1

HYDRAULIC HOSE

.375 x 130"

1шт.

35

1284298C1

HYDRAULIC HOSE

.375 x 160"

1шт.

36

435694A1

HYDRAULIC HOSE

.375 x 190"

1шт.

37

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

.375 x 17"

1шт.

38

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

.375 x 21"

1шт.
