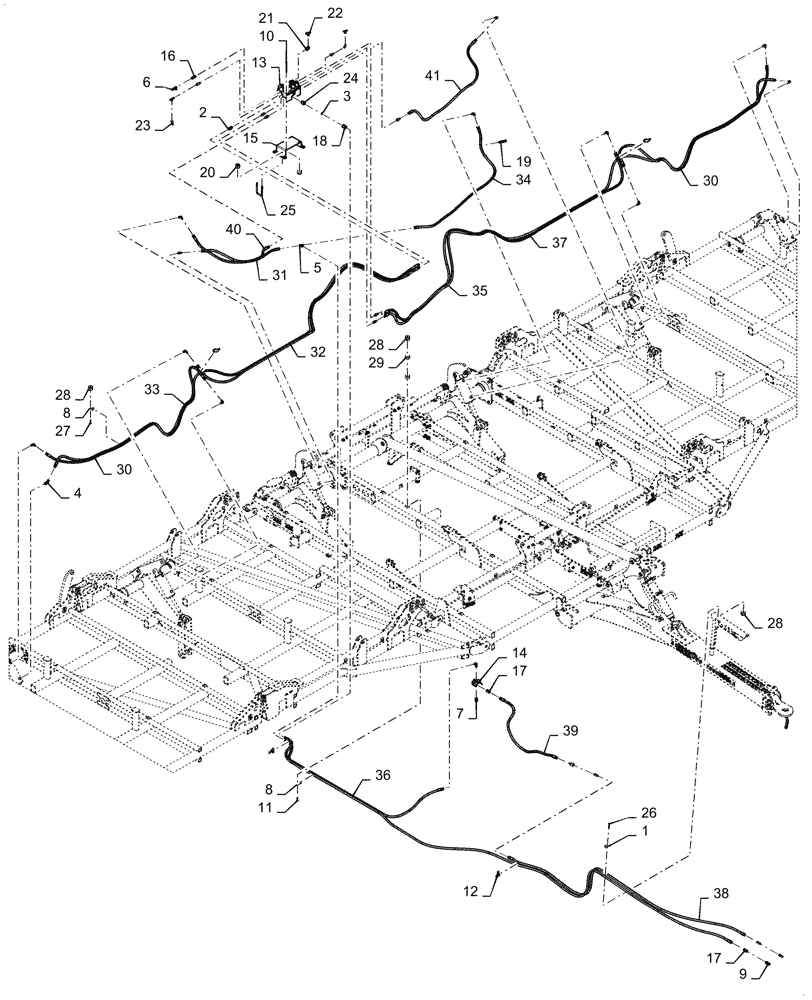

Запчасти Case IH TM255 (35.100.038) - HYDRAULIC LIFT 51 FOOT NARROW CONSTANT LEVEL HITCH (35) - HYDRAULIC SYSTEMS

1

06200125

HOSE CLAMP

2шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

6шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

6

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

7

214389

PLUG,3/4" - 16 ORB

1шт.

8

22510710

HOSE CLAMP

3/4"

31шт.

9

25705041

COUPLING

3/4"

2шт.

10

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3шт.

11

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3шт.

12

327144A1

STRAP,328mm L

3шт.

13

47860862

VALVE BODY

Lift And Fold

1шт.

14

47937500

VALVE

SPDC

1шт.

15

47947233

MOUNT

Valve

1шт.

16

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

3шт.

17

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

18

84269593

FILTER

100 Micron

4шт.

19

84360212

CABLE TIE,294.2mm L, Nylon

4шт.

20

85700693

NUT,5/8" - 11, Gr C

4шт.

21

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

22

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

23

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

24

87329794

FITTING

1/2" x 3/4"

3шт.

25

87427177

U-BOLT

.625 x 3.00"

2шт.

26

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

27

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

26шт.

28

88902

NUT,3/8"-16

35шт.

29

9628503

NUT,3/8"-16, G5

6шт.

30

1337376C1

HYDRAULIC HOSE

.500 x 140"

2шт.

31

90874C1

HYDRAULIC HOSE

.500 x 55"

1шт.

32

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

.500 x 180"

1шт.

33

245606A1

HYDRAULIC HOSE

.500 x 310"

1шт.

34

196584C2

HYDRAULIC HOSE

.500 x 95"

1шт.

35

134209A1

HOSE

.500 x 345"

2шт.

36

91203C1

HOSE,12.70 mm ID x 3175.00 mm

.500 x 125"

1шт.

37

134213A1

HYDRAULIC HOSE

.500 x 220"

1шт.

38

1337360C1

HOSE ASSY.

.500 x 175"

1шт.

39

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

.500 x 65"

1шт.

40

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

.500 x 43"

1шт.

41

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

.500 x 80"

1шт.
