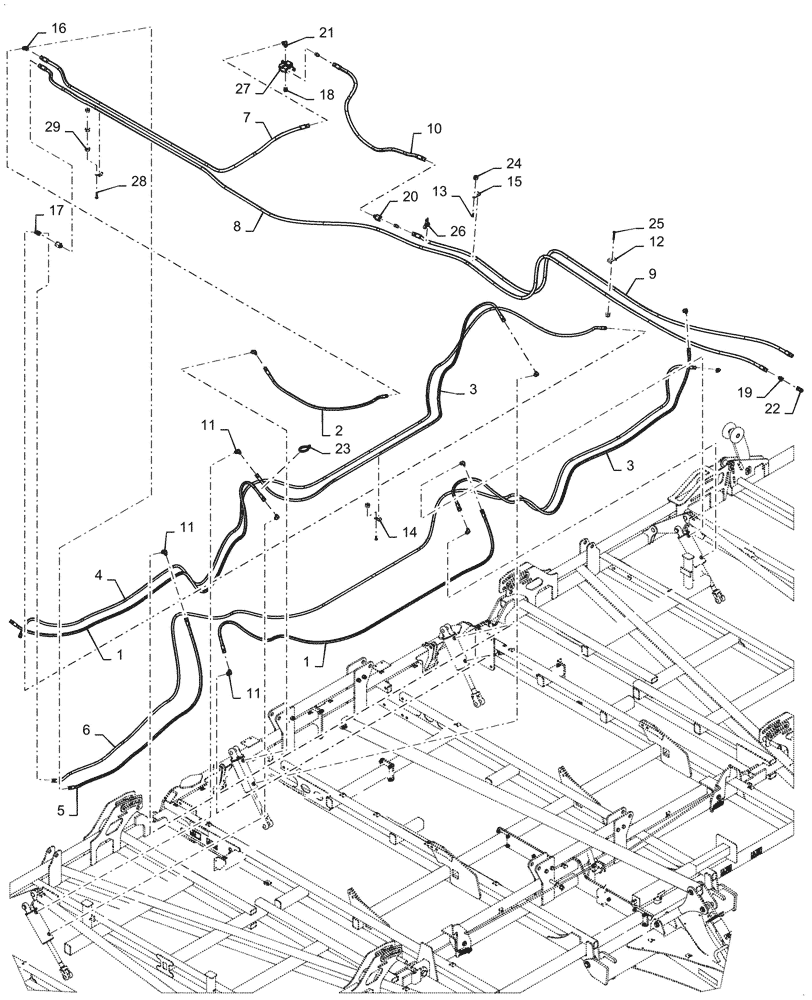

Запчасти Case IH TM255 (35.100.030) - HYDRAULICS LIFT 51 FOOT CONSTANT LEVEL HITCH (35) - HYDRAULIC SYSTEMS

1

1284252C1

HYDRAULIC HOSE

3/8" x 140"

2шт.

2

1284301C1

HYDRAULIC HOSE

3/8" x 45"

1шт.

3

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

3/8" x 150"

2шт.

4

435691A1

HYDRAULIC HOSE

3/8" x 300"

1шт.

5

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95"

1шт.

6

87415059

HYDRAULIC HOSE,9.53mm ID x 8765mm L

3/8" x 345"

1шт.

7

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

1/2" x 120"

1шт.

8

411929A1

HYDRAULIC HOSE

1/2" x 330"

1шт.

9

1337360C1

HOSE ASSY.

1/2" x 175"

1шт.

10

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1/2" x 65"

1шт.

11

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

12шт.

12

06200125

HOSE CLAMP

2шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

25шт.

14

22510700

HOSE CLAMP,15.86mm

20шт.

15

22510710

HOSE CLAMP

3/4"

9шт.

16

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

17

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

20

84269593

FILTER

100 Micron

2шт.

21

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

22

25705041

COUPLING

3/4"

2шт.

23

84360212

CABLE TIE,294.2mm L, Nylon

4шт.

24

88902

NUT,3/8"-16

31шт.

25

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

26

327144A1

STRAP,328mm L

2шт.

27

47937500

VALVE

SPDC

1шт.

28

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3шт.

29

9628503

NUT,3/8"-16, G5

8шт.
