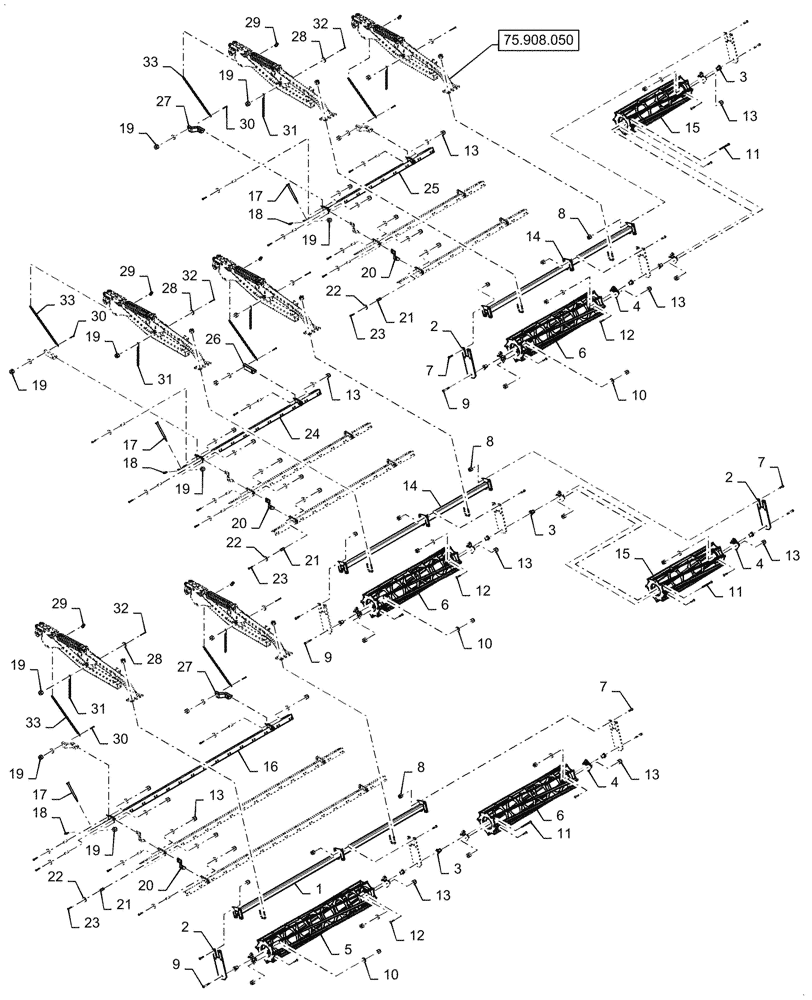

Запчасти Case IH TM255 (75.908.020) - ACS, 3 BAR SPIKE (75) - SOIL PREPARATION

1

47596263

TUBE

Basket Mount, 135"

1шт.

2

47817917

PLATE

Bearing Hanger

15шт.

3

47453057

SPINDLE

Bearing, Hard

20шт.

4

47451691

BEARING CONE

Flanged, Peer

20шт.

5

47432098

BASKET

8 Bar, 75"

1шт.

6

47449563

BASKET

8 Bar, 60"

5шт.

7

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

60шт.

8

85700693

NUT,5/8" - 11, Gr C

75шт.

9

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

10шт.

10

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

20шт.

11

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5шт.

12

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

80шт.

13

88871

NUT,1/2"-13, GC

150шт.

14

47477621

TUBE

Basket Mount, 105"

4шт.

15

47449568

BASKET

8 Bar, 45"

4шт.

16

47959200

ANGLE

17 Spike

3шт.

17

33407513

SHOVEL

Harrow

189шт.

18

16306050

U-BOLT

189шт.

19

88902

NUT,3/8"-16

448шт.

20

47859141

PLATE

20шт.

21

02323001

BUSHING

50шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

100шт.

23

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

50шт.

24

47959197

ANGLE

12 Spike

6шт.

25

47959196

ANGLE

11 Spike

6шт.

26

48027363

LINK

Harrow, RH Pull

7шт.

27

48027368

LINK

Harrow, Straight Pull

3шт.

28

17407015

WASHER

70шт.

29

270184

LINCH PIN,6.35mm OD

10шт.

30

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

31

48034301

CHAIN

1/4 x 14.28 Long

30шт.

32

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

30шт.

33

47963674

CHAIN

1/4 x 25.5 Long

10шт.

34

48026529

BUSHING

1шт.
