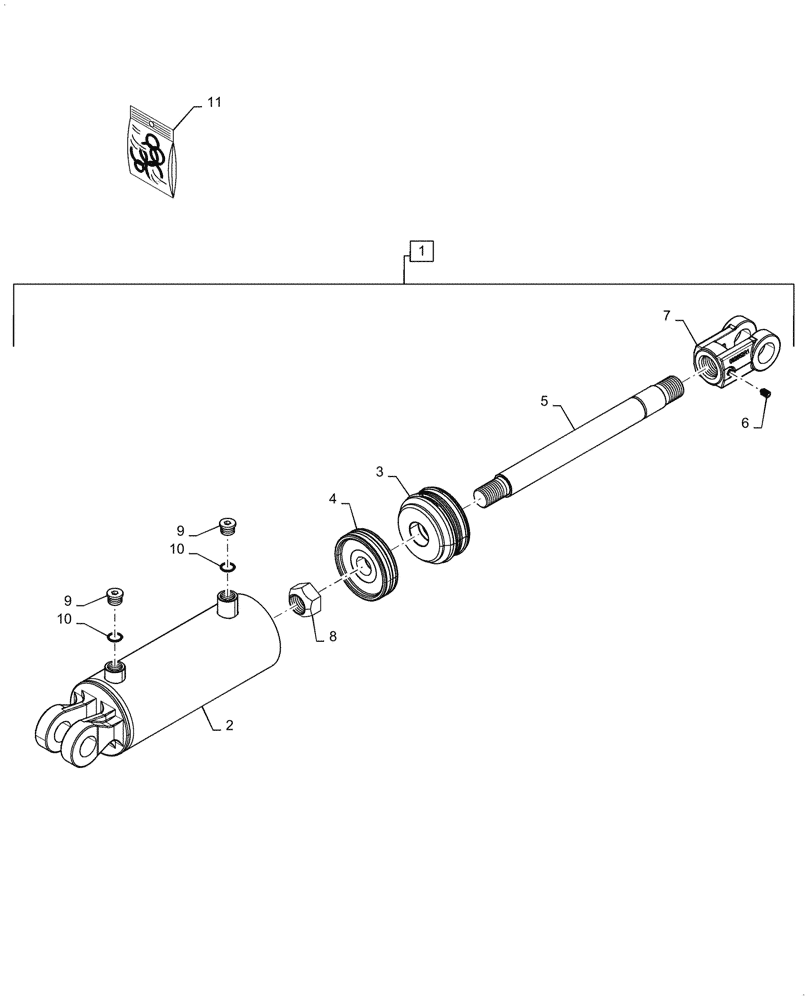

Запчасти Case IH TM255 (35.100.059) - HYDRAULIC CYLINDER LIFT 4 X 8 1.375 CHROME ROD (35) - HYDRAULIC SYSTEMS

1

47719399

HYDRAULIC CYLINDER

Lift 4 x 8 1.375 Chrome Rod Incl 2-10

1шт.

2

47638915

TUBE

Cylinder

1шт.

3

47638917

HYDRAULIC CYLINDER

Head

1шт.

4

47638750

PISTON

Cylinder

1шт.

5

47638920

ROD

Cylinder

1шт.

6

84212867

SET SCREW

3/8"

1шт.

7

84221842

CLEVIS

Rod

1шт.

8

87652886

NUT

Hex

1шт.

9

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

47638924

SEAL KIT

1шт.
