Запчасти Case IH TM255 (35.100.029) - HYDRAULIC FOLD 46 FOOT FLOATING HITCH (35) - HYDRAULIC SYSTEMS

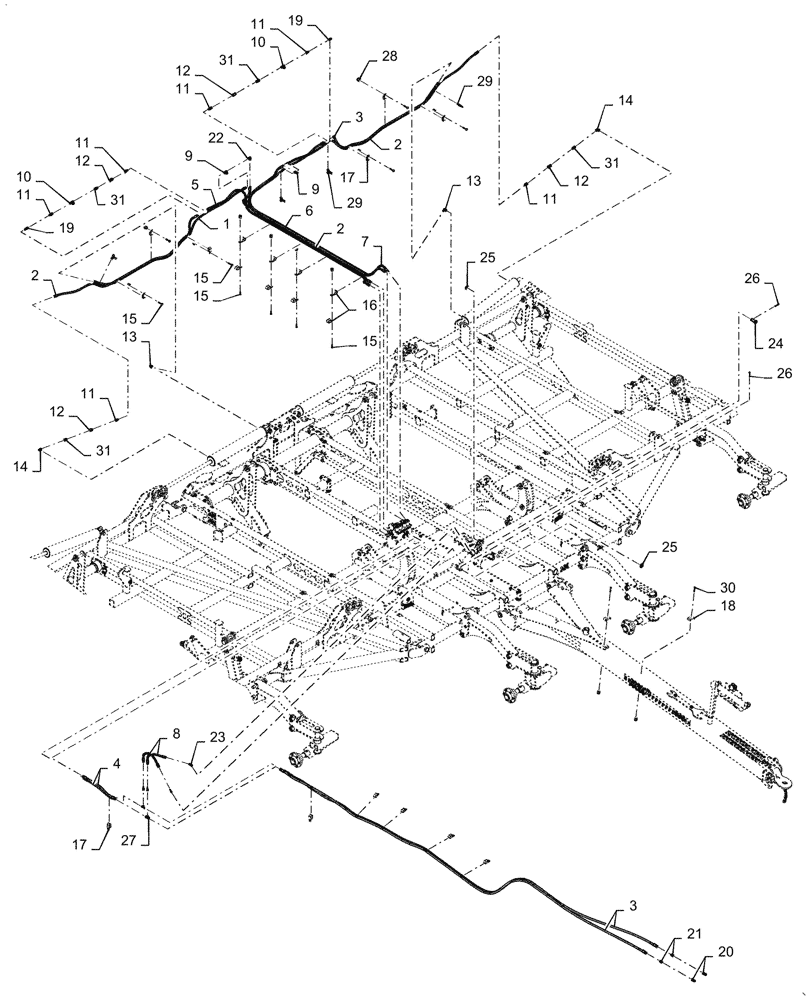

Схема запчастей Case IH TM255 - (35.100.029) - HYDRAULIC FOLD 46 FOOT FLOATING HITCH (35) - HYDRAULIC SYSTEMS
7
15
2
11
8
4
9
11
12
18
26
15
13
11
19
11
3
11
13
21
23
27
10
9
25
19
29
28
30
16
10
26
24
17
14
15
22
17
31
12
12
15
31
14
11
12
2
20
5
2
25
1
29
31
6
31
3

Артикул

Название

Примечание

Количество

1

1301350C2

HYDRAULIC HOSE

.375 x 120"

2шт.

2

812381C2

HYDRAULIC HOSE

.375 x 115"

3шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

2шт.

4

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

5

139519C2

HYDRAULIC HOSE

.375 x 135"

1шт.

6

1284298C1

HYDRAULIC HOSE

.375 x 160"

1шт.

7

1284252C1

HYDRAULIC HOSE

.375 x 140"

1шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

2шт.

9

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

10

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

11

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

8шт.

12

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

13

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

16

22510700

HOSE CLAMP,15.86mm

14шт.

17

22510710

HOSE CLAMP

3/4"

6шт.

18

06200125

HOSE CLAMP

2шт.

19

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

20

25705041

COUPLING

Male 3/4'

2шт.

21

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

22

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

23

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

24

87023161

HEADED PIN,1" x 3"

1шт.

25

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

26

88182

COTTER PIN,1/4" OD x 2" L

2шт.

27

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

28

88902

NUT,3/8"-16

12шт.

29

327144A1

STRAP,328mm L

5шт.

30

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

31

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

Выбрано товаров: 31
