Запчасти Case IH TM255 (35.100.026) - HYDRAULIC FOLD 46 FOOT (35) - HYDRAULIC SYSTEMS

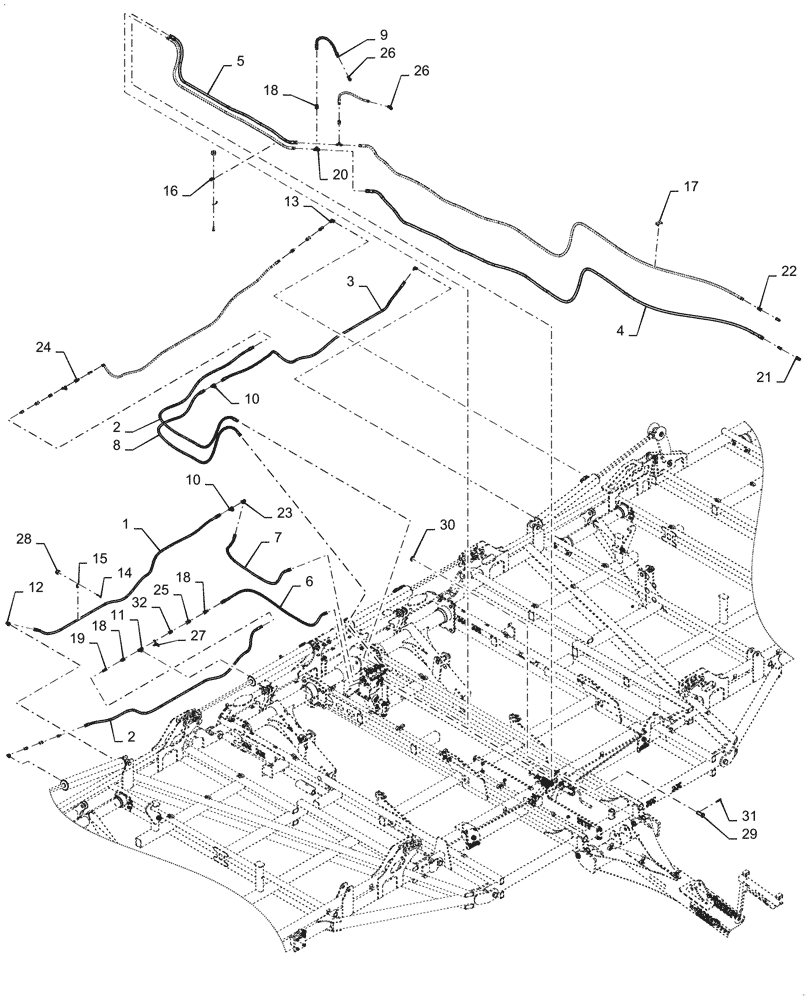

Схема запчастей Case IH TM255 - (35.100.026) - HYDRAULIC FOLD 46 FOOT (35) - HYDRAULIC SYSTEMS
1
15
17
29
18
24
26
16
20
22
11
21
2
30
32
25
10
3
27
13
6
2
7
19
12
14
23
26
4
31
9
18
5
28
8
10
18

Артикул

Название

Примечание

Количество

1

1301350C2

HYDRAULIC HOSE

.375 x 120"

2шт.

2

812381C2

HYDRAULIC HOSE

.375 x 115"

2шт.

3

139654C2

HYDRAULIC HOSE

.375 x 125"

1шт.

4

1978106C1

HOSE

.500 x 240"

2шт.

5

196584C2

HYDRAULIC HOSE

.500 x 95"

2шт.

6

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

7

1254574C2

HYDRAULIC HOSE

.375 x 60"

1шт.

8

810570C2

HYDRAULIC HOSE

.375 x 90"

1шт.

9

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

2шт.

10

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

11

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

12

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

13

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

7шт.

15

22510700

HOSE CLAMP,15.86mm

8шт.

16

22510710

HOSE CLAMP

3/4"

7шт.

17

06200125

HOSE CLAMP

Hydraulic

2шт.

18

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

8шт.

19

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

20

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

21

25705041

COUPLING

3/4"

2шт.

22

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

23

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

24

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

25

NS

NOT SERVICED

Brown Throtle cable

2шт.

26

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

27

327144A1

STRAP,328mm L

6шт.

28

88902

NUT,3/8"-16

7шт.

29

87023161

HEADED PIN,1" x 3"

1шт.

30

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

31

88182

COTTER PIN,1/4" OD x 2" L

1шт.

32

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

Выбрано товаров: 32
