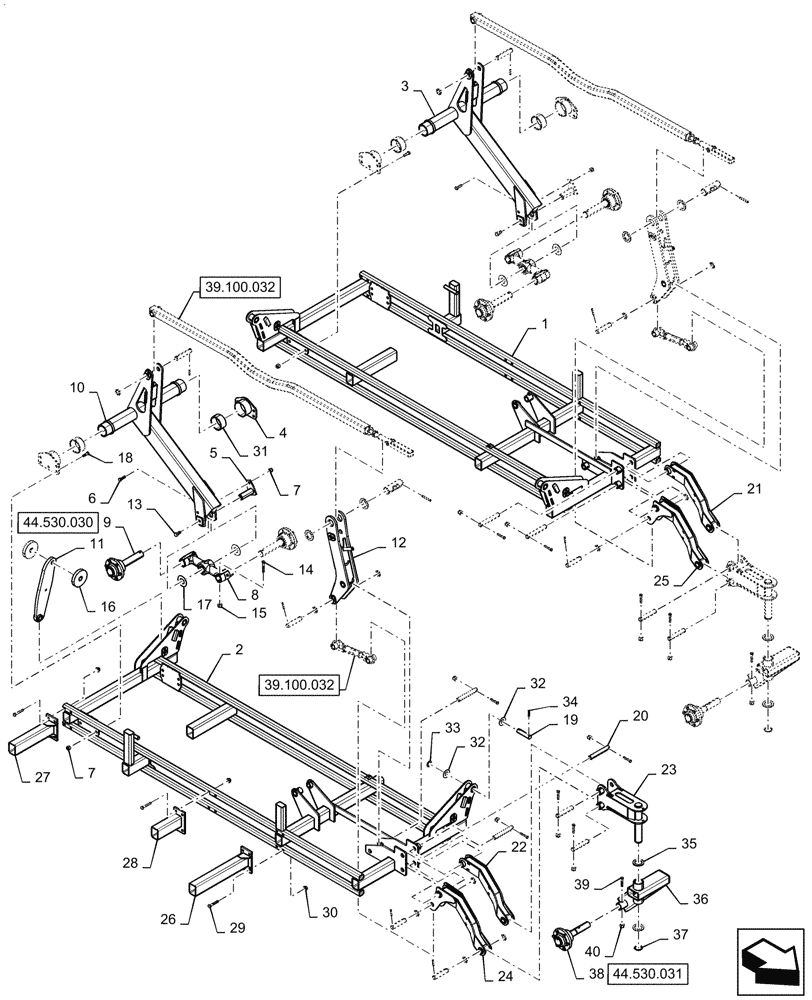

Запчасти Case IH TM255 (39.100.064) - OUTER WING DOUBLE FOLD 40 FOOT FLOATING HITCH (39) - FRAMES AND BALLASTING

1

47794324

FRAME

Left Outer Wing With Bushings

1шт.

2

47794357

FRAME

Right Outer Wing With Bushings

1шт.

3

47757280

FRAME

Left Wing Rockshaft

1шт.

4

47801178

SUPPORT

Rockshaft

1шт.

5

47922232

PIN

Flag

2шт.

6

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

7

85700693

NUT,5/8" - 11, Gr C

18шт.

8

47920071

CASTER

Walking Tandem

2шт.

9

47842667

HUB

6 Bolt 783

4шт.

10

47757281

FRAME

Right Wing Rockshaft

1шт.

11

47894858

LINKAGE

Fold

2шт.

12

47755888

LINK BLOCK

2шт.

13

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

14

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

15

88871

NUT,1/2"-13, GC

4шт.

16

84257918

ROLLER

Outer Wing

4шт.

17

47733606

WASHER

1.75 ID x 3.75"

4шт.

18

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

19

47922233

PIN

1.25 x 5.27"

4шт.

20

47922237

PIN

1.25 x 6.53"

2шт.

21

47894140

LINKAGE

Left Offset

1шт.

22

47894131

LINKAGE

Right Offset

1шт.

23

47890562

BRACKET

Gauge Wheel

1шт.

24

47894123

LINK BLOCK

Right Offset

1шт.

25

47894127

LINK BLOCK

Left Lower

1шт.

26

47796613

TUBE

23.5" Stub

2шт.

27

47873862

TUBE

17" Stub

2шт.

28

47796614

TUBE

10.75" Stub

2шт.

29

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

24шт.

30

84180923

FLANGE NUT

.625"

24шт.

31

47753605

BUSHING

Nyltron

1шт.

32

47733622

WASHER

Thrust

8шт.

33

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

34

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

8шт.

35

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

2шт.

36

47890578

FRAME

Pivoting Gauge Wheel

1шт.

37

11069671

SNAP RING,M56, Ext

1шт.

38

28078350

HUB ASSY.

783 6 Bolt

1шт.

39

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

40

88871

NUT,1/2"-13, GC

1шт.
