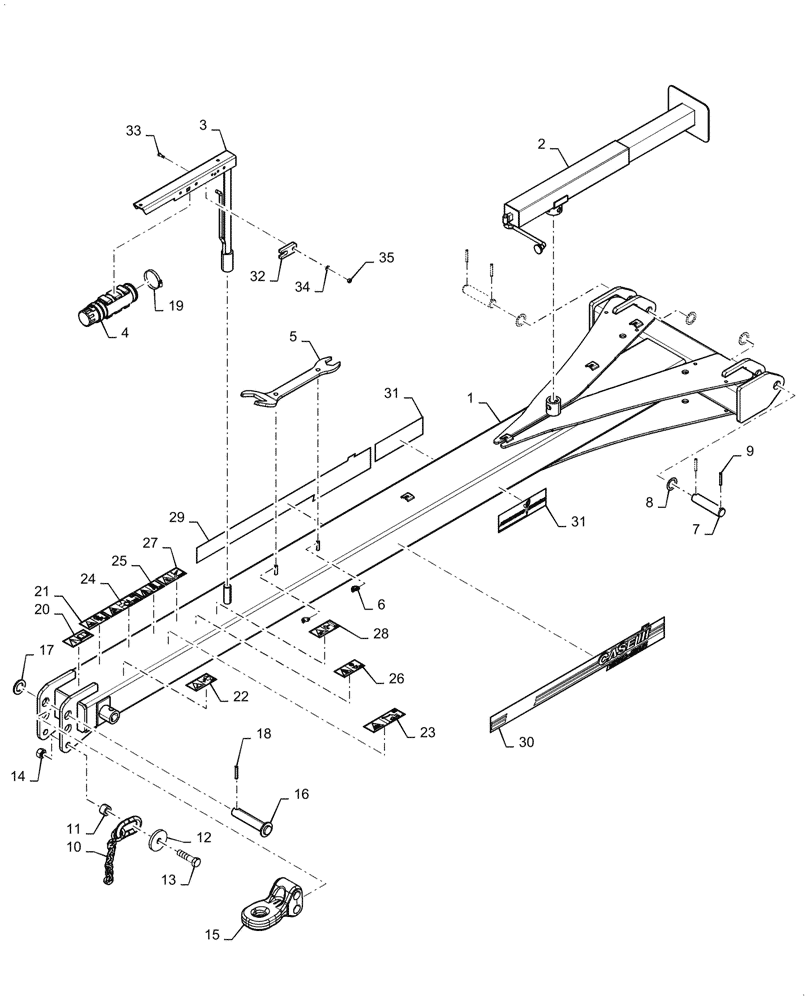

Запчасти Case IH TM255 (37.162.055) - HITCH FLOATING 37,40,16 FOOT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47792271

FRAME

Hitch Incl

1шт.

2

84399165

JACK

5000 Lb

1шт.

3

87452523

MOUNTING PARTS

Swing Hose Boom

1шт.

4

47889193

BOX

Manual Canister

1шт.

5

47823571

MOUNT

Wrench Turnbuckle

1шт.

6

A33497

LINCH PIN,4.76mm OD Pin

2шт.

7

14892649

SPECIAL PIN,41.28mm OD x 177.8mm L

2шт.

8

87635891

SPARE PARTS CAT

4шт.

9

87635861

ROLL PIN

.375 x 2.50

4шт.

10

87389757

CHAIN

Safety 30000 Lbs

1шт.

11

04681211

BUSHING

1.75 OD x 1.03 ID

1шт.

12

06400065

WASHER

Heavy

1шт.

13

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

14

86992219

LOCK NUT

Hex

1шт.

15

84399324

HITCH

Casting Cat IV

1шт.

16

84257536

PIN

Hitch

2шт.

17

17426001

WASHER

2шт.

18

47478854

PIN

7/16"

2шт.

19

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

20

47358801

CAUTION DECAL

Caution ISO

1шт.

21

84599913

DECAL

No Riders

1шт.

22

84600504

DECAL

High PSI

1шт.

23

84599914

DECAL

Danger Electrical Shock

1шт.

24

84599861

DECAL

Tipping Hazard

1шт.

25

84600535

DECAL

Warning

1шт.

26

84599866

DECAL

Towing Hazard

1шт.

27

84599911

CAUTION DECAL

Cylinder Lock

1шт.

28

84600501

WARNING DECAL

Oil Penetration

1шт.

29

47947601

DECAL

Right Tri-Stripe

1шт.

30

47947602

DECAL

Left Tri-Stripe

1шт.

31

47623656

DECAL

Agronomic

2шт.

32

06403190

BAR ASSY.

Spacer

1шт.

33

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

34

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.
