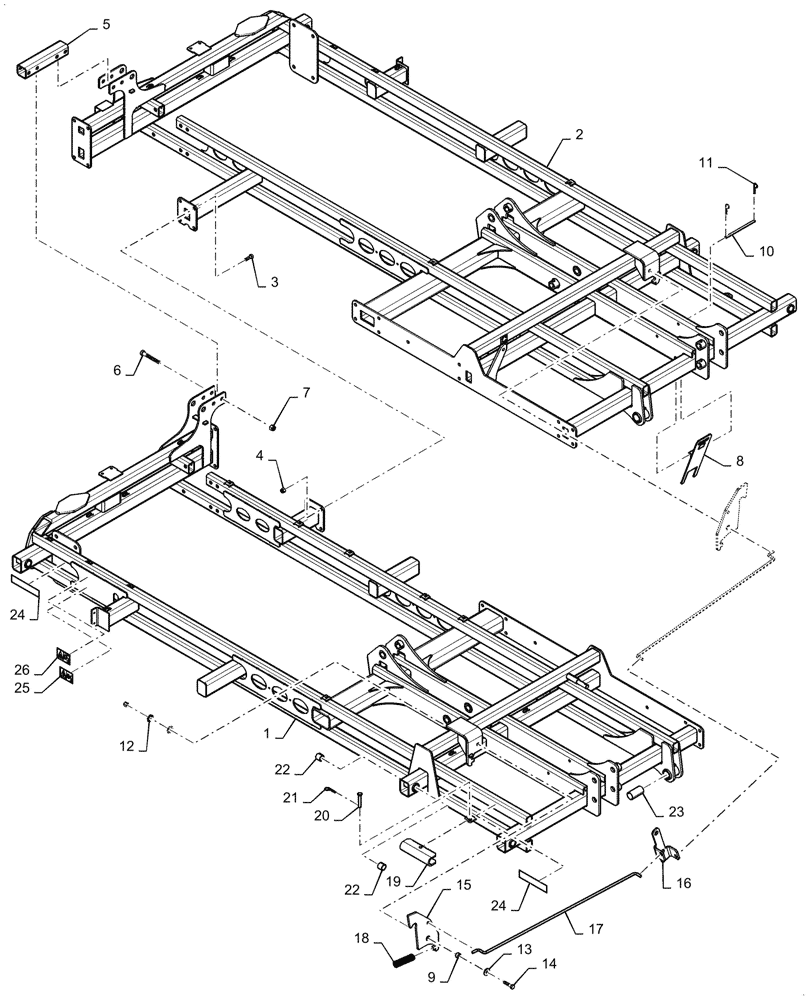

Запчасти Case IH TM255 (39.100.062) - MAINFRAME 11FT DOUBLE FOLD FLOATING HITCH (39) - FRAMES AND BALLASTING

1

47777777

FRAME

Right 11 Ft

1шт.

2

47777782

FRAME

Left 11 Ft

1шт.

3

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

20шт.

4

85700693

NUT,5/8" - 11, Gr C

23шт.

5

47823256

TUBE

3x3 Bolt

1шт.

6

280455

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

4шт.

7

280375

NUT,3/4"-10, GC

4шт.

8

48044524

STOP

Turnbuckle

2шт.

9

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

3шт.

10

47922244

PIN

Stop

2шт.

11

14720411

COTTER PIN

1/8" 2"

4шт.

12

17618030

BUSHING

1.125"

6шт.

13

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

3шт.

14

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

3шт.

15

48026588

PLATE

Latch

2шт.

16

47806715

PLATE

.625 x 2.50"

1шт.

17

47835620

ROD

latch 11 Ft

2шт.

18

24117700

COMPRESSION SPRING

Black

2шт.

19

47666377

STOP

1.5"

2шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

2шт.

21

14720411

COTTER PIN

1/8" x 2"

2шт.

22

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

6шт.

23

47559030

BUSHING

1.625 Id X 1.88 OD

1шт.

24

311864A1

REFLECTOR

2x9"

2шт.

25

84600515

WARNING DECAL

Pinch Hazard

1шт.

26

84599919

DECAL

Crushing Hazzard

1шт.
