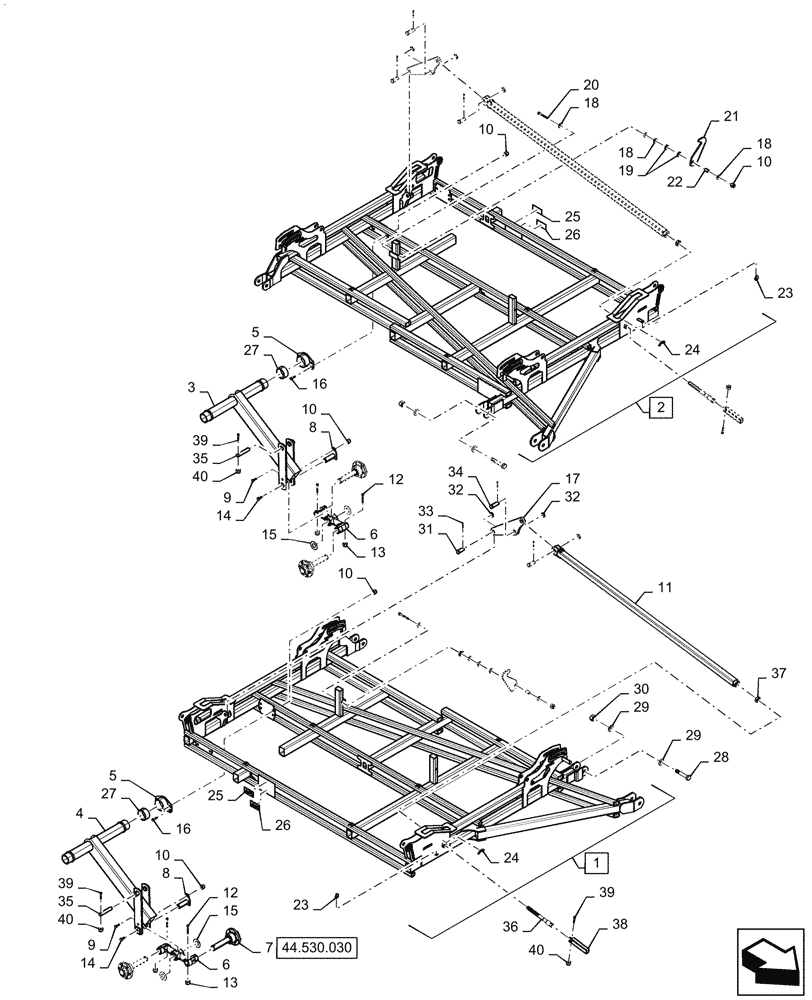

Запчасти Case IH TM255 (39.100.042) - INNERWING FRAME, 37/40FT (39) - FRAMES AND BALLASTING

1

48032775

FRAME

Inner Wing Right Incl 24-26

1шт.

2

48032793

FRAME

Inner Wing Left Incl 24-26

1шт.

3

47795651

FRAME

Left Wing Rockshaft

1шт.

4

47795652

FRAME

Right Wing Rockshaft

1шт.

5

47801178

SUPPORT

Rockshaft

1шт.

6

47920071

CASTER

Walking Tandem

2шт.

7

47842667

HUB

6 Bolt 783

4шт.

8

47922232

PIN

Flag 1.75" OD

2шт.

9

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

10

85700693

NUT,5/8" - 11, Gr C

20шт.

11

47879139

TUBE

Wing Adjustment Link

1шт.

12

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

13

88871

NUT,1/2"-13, GC

4шт.

14

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

15

47733606

WASHER

Thrust Nylon 1.75" ID x 3.75" OD

4шт.

16

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

17

47776477

PLATE

Wing Rocker

2шт.

18

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

19

17618030

BUSHING

1.125"

4шт.

20

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

21

84126353

PLATE

Latch

2шт.

22

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

23

D33805

PIN

Klik

2шт.

24

84366835

DECAL

Depth Control

1шт.

25

84599919

DECAL

Crushing Hazard

1шт.

26

84600515

WARNING DECAL

Pinch Hazard

1шт.

27

47753605

BUSHING

Nylatron

1шт.

28

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

6шт.

29

47733622

WASHER

1.25 ID x 2.75" OD

12шт.

30

86992220

NUT

1.25"

6шт.

31

84156992

PIN

1.250 x 3.00"

4шт.

32

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

33

88182

COTTER PIN,1/4" OD x 2" L

6шт.

34

84156994

CLEVIS PIN

1.250 x 3.75"

2шт.

35

47922239

PIN

1.25" x 6.57"

2шт.

36

47880190

SCREW

Depth Adjustment

1шт.

37

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

38

06400160

CRANKED HANDLE

1шт.

39

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

40

88871

NUT,1/2"-13, GC

1шт.
