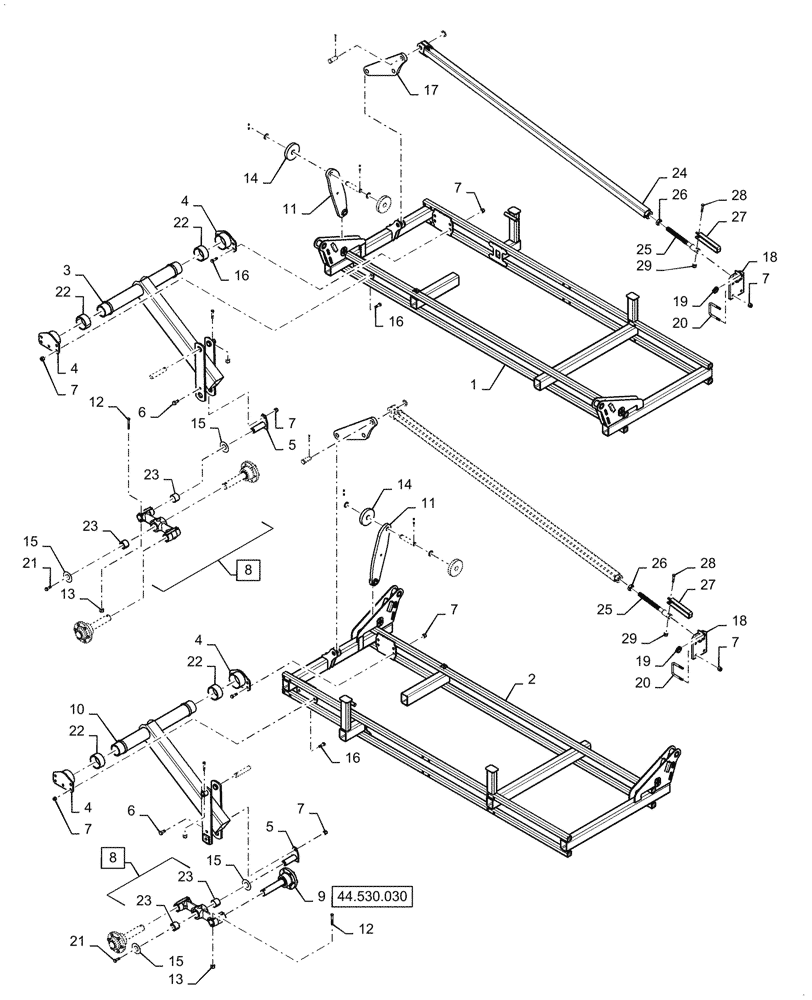

Запчасти Case IH TM255 (39.100.040) - OUTER WING FRAME, 37 FOOT CL (39) - FRAMES AND BALLASTING

1

47901055

FRAME

5 Ft Left

1шт.

2

47901051

FRAME

5 Ft Right

1шт.

3

47795651

FRAME

Wing Left

1шт.

4

47801178

SUPPORT

Rockshaft

1шт.

5

47922232

PIN

1.75"

2шт.

6

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

7

85700693

NUT,5/8" - 11, Gr C

26шт.

8

47920071

CASTER

Walking Tandem

2шт.

9

47842667

HUB

6 Bolt 783

4шт.

10

47795652

FRAME

Wing Right

1шт.

11

47894858

LINKAGE

Fold

2шт.

12

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

13

88871

NUT,1/2"-13, GC

4шт.

14

84257918

ROLLER

Outer Wing

4шт.

15

47733606

WASHER

1.75 ID x 3.75"

4шт.

16

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

17

47776477

PLATE

Plate

2шт.

18

48032903

PLATE

Link Mount

2шт.

19

D33805

PIN

Klik

2шт.

20

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

4шт.

21

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

22

47753605

BUSHING

1шт.

23

47771952

BUSHING

1.75 ID x 2.38"

2шт.

24

47879139

TUBE

Wing Adjustment

1шт.

25

47880190

SCREW

Depth Adjustment

1шт.

26

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

27

06400160

CRANKED HANDLE

Depth Adjust

1шт.

28

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

29

88871

NUT,1/2"-13, GC

1шт.

30

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

2шт.

31

47675936

BUSHING

2шт.

32

84366835

DECAL

Depth Adjustment

1шт.
