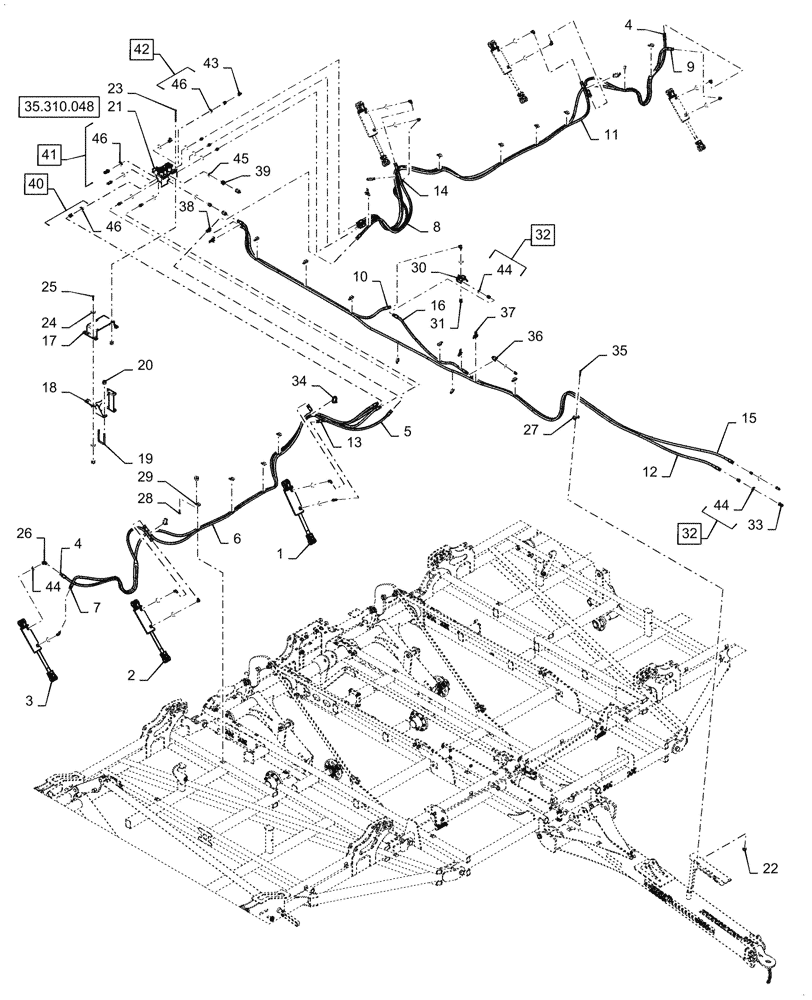

Запчасти Case IH TM255 (35.100.010) - NARROW HYDRAULIC LIFT/FOLD , 37/40FT CL (35) - HYDRAULIC SYSTEMS

1

47407278

HYDRAULIC CYLINDER

2шт.

2

47407272

HYDRAULIC CYLINDER

2шт.

3

47407270

HYDRAULIC CYLINDER

2шт.

4

196584C2

HYDRAULIC HOSE

.500 x 95"

2шт.

5

90874C1

HYDRAULIC HOSE

.500 x 55"

1шт.

6

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

1шт.

7

118813A1

HOSE

.500 x 245"

1шт.

8

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

9

1337374C1

HYDRAULIC HOSE

.500 x 270"

1шт.

10

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

11

134215A1

HYDRAULIC HOSE

.500 x 205"

1шт.

12

411929A1

HYDRAULIC HOSE

.500 x 330"

1шт.

13

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

1шт.

14

1301966C2

HYDRAULIC HOSE

.500 x 70"

1шт.

15

1337360C1

HOSE ASSY.

.500 x 175"

1шт.

16

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

17

47947233

MOUNT

Valve

1шт.

18

47952778

MOUNT

Valve

1шт.

19

87427177

U-BOLT

2шт.

20

85700693

NUT,5/8" - 11, Gr C

4шт.

21

47860862

VALVE BODY

Assy, Hydraulic and Fold

1шт.

22

88902

NUT,3/8"-16

30шт.

23

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3шт.

24

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

9шт.

25

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

26

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

13шт.

27

06200125

HOSE CLAMP

2шт.

28

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

21шт.

29

22510710

HOSE CLAMP

22шт.

30

47937500

VALVE

SPDC

1шт.

31

214389

PLUG,3/4" - 16 ORB

1шт.

32

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 44

4шт.

33

25705041

COUPLING

2шт.

34

84360212

CABLE TIE,294.2mm L, Nylon

4шт.

35

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

36

84269593

FILTER

Strainer, 100 Micron

4шт.

37

327144A1

STRAP,328mm L

4шт.

38

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

39

87329794

FITTING

3шт.

40

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 46

6шт.

41

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 46

3шт.

42

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

Incl 46

1шт.

43

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

44

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

45

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

46

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.
