Запчасти Case IH TM255 (55.511.052) - REAR WIRE HARNESS ASSY (55) - ELECTRICAL SYSTEMS

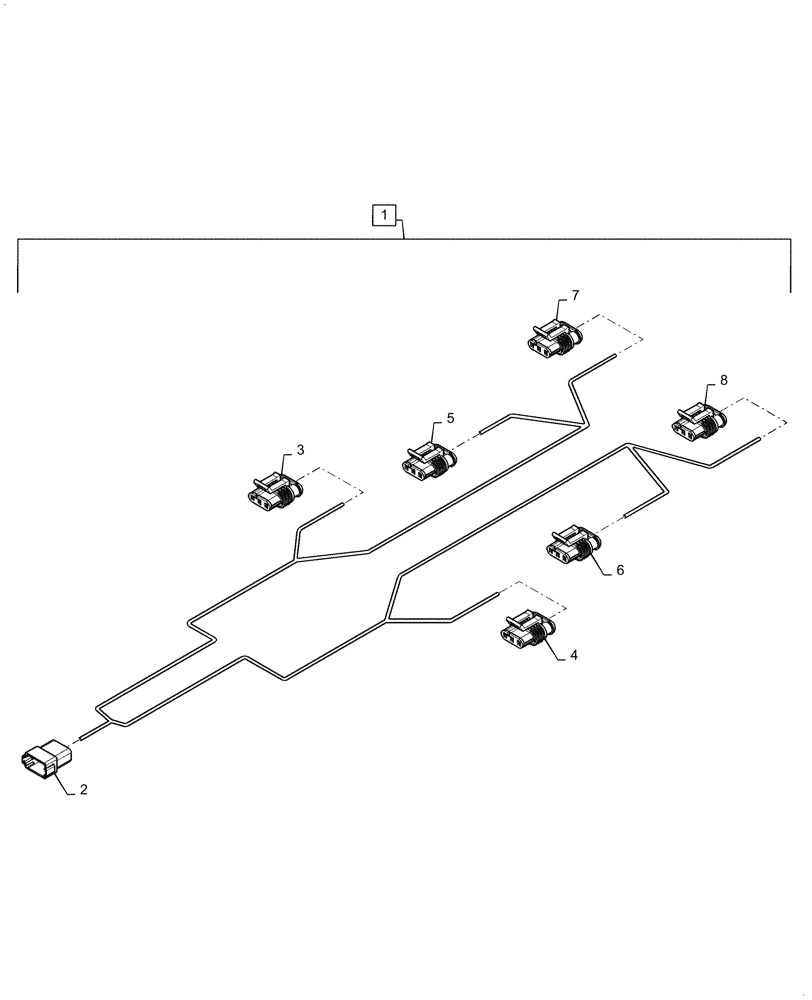

Схема запчастей Case IH TM255 - (55.511.052) - REAR WIRE HARNESS ASSY (55) - ELECTRICAL SYSTEMS
7
5
2
3
1
4
6
8

Артикул

Название

Примечание

Количество

1

47702200

WIRE HARNESS

Rear Lights, Incl 2 - 8

1шт.

2

84122362

ELEC CONNECTOR

X-101, Front

1шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-101, Wedge Lock

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X-101, Front

4шт.

2

87695623

ELEC. TERMINAL PIN

X-101, Front

6шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X-101, Front

2шт.

3

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-107, Red Right Connector

1шт.

3

87688852

ELEC. TERMINAL PIN

X-107, Red Right Connector

3шт.

3

84552243

SEAL

X-107, Red Right Connector

3шт.

3

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

4

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-106, Red Left Connector

1шт.

4

87688852

ELEC. TERMINAL PIN

X-106, Red Left Connector

3шт.

4

84552243

SEAL

X-106, Red Left Connector

3шт.

4

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

5

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-105, Front Right Amber

1шт.

5

87688852

ELEC. TERMINAL PIN

X-105, Front Right Amber

2шт.

5

84552243

SEAL

X-105, Front Right Amber

2шт.

5

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

5

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity Plug Red

1шт.

6

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-103, Front Left Amber

1шт.

6

87688852

ELEC. TERMINAL PIN

X-103, Front Left Amber

2шт.

6

84552243

SEAL

X-103, Front Left Amber

2шт.

6

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity Plug Red

1шт.

7

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-104, Rear Right Amber

1шт.

7

87688852

ELEC. TERMINAL PIN

X-104, Rear Right Amber

2шт.

7

84552243

SEAL

X-104, Rear Right Amber

2шт.

7

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

7

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity Plug Red

1шт.

8

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-102, Rear Left Amber

1шт.

8

87688852

ELEC. TERMINAL PIN

X-102, Rear Left Amber

2шт.

8

84552243

SEAL

X-102, Rear Left Amber

2шт.

8

87693732

LOCKING TAB,Wedge Lock

Secondary Lock

1шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity Plug

1шт.

Выбрано товаров: 34
