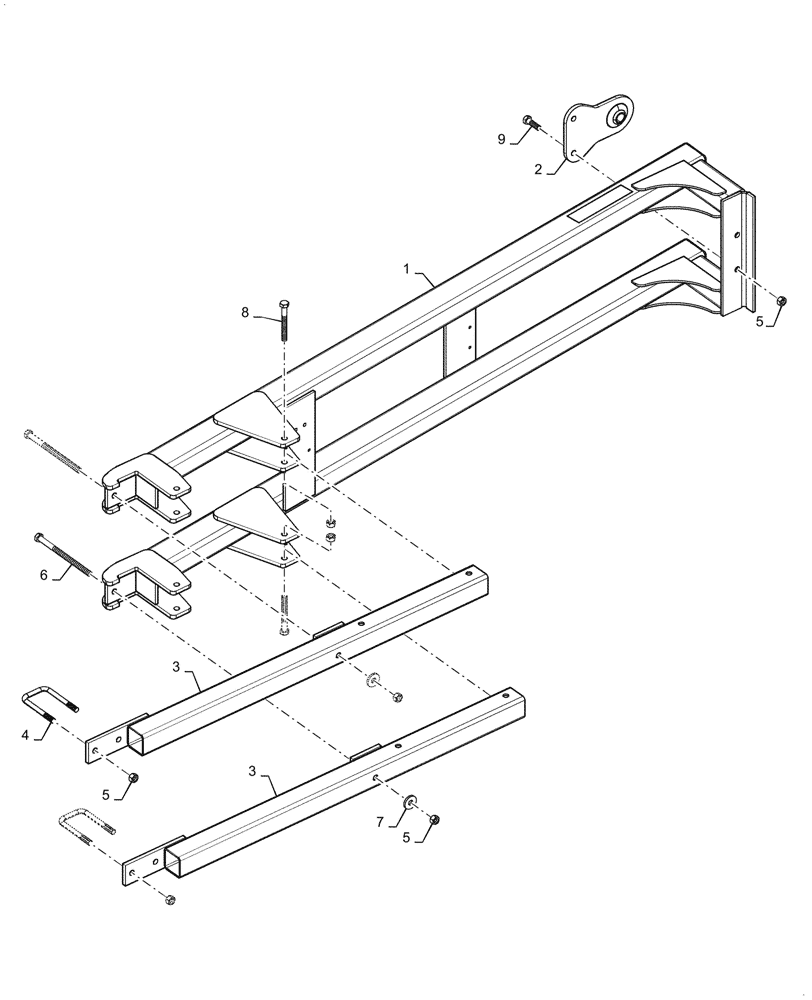

Запчасти Case IH TM255 (37.166.040) - REAR HITCH ASSEMBLY, 35 FOOT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

48073908

Hitch, 35 Foot W/ Decals

HITCH

1шт.

2

48070366

PLATE

1шт.

3

48067296

Rear Hitch Support

ARM

2шт.

4

87427177

U-BOLT

2шт.

5

86992216

NUT

12шт.

6

86509114

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5

2шт.

7

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

8

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.
