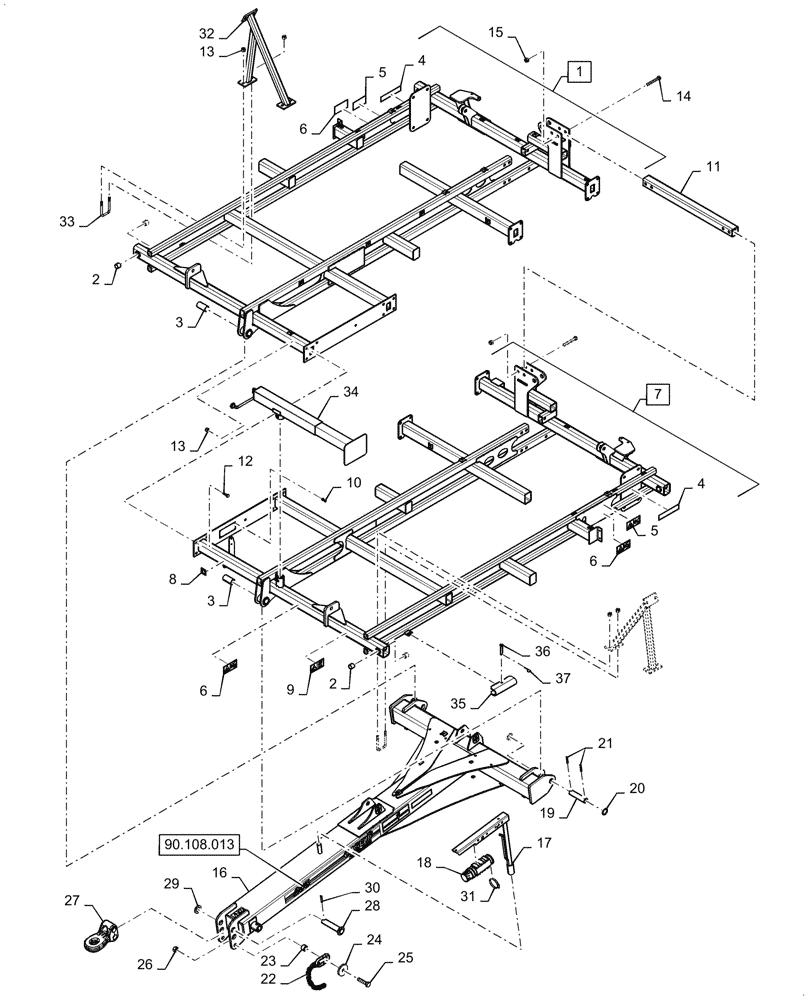

Запчасти Case IH TM255 (37.162.052) - MANUAL FOLD, PULL HITCH, RIGID (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47779348

FRAME

RH Assy, Incl 2 - 6

1шт.

2

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

Greaseless

8шт.

3

47559030

BUSHING

Composite

2шт.

4

311864A1

REFLECTOR

Amber

2шт.

5

84600515

WARNING DECAL

Pinch Hazard

2шт.

6

84599919

DECAL

Danger, Crushing Hazard

3шт.

7

47779355

FRAME

LH Assy, Incl 2 - 6, 8 - 10

1шт.

8

87414072

DECAL

SPDC Depth

1шт.

9

84599877

DECAL

Warning, Stored Energy

1шт.

10

97571C1

RIVET

Serial Plate

1шт.

11

47849214

TUBE

Bolt on Truss

1шт.

12

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

17шт.

13

85700693

NUT,5/8" - 11, Gr C

25шт.

14

280455

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

4шт.

15

280375

NUT,3/4"-10, GC

4шт.

16

47792273

FRAME

Hitch, Wide W/Decals

1шт.

17

87452523

MOUNTING PARTS

Swinging Hose Boom

1шт.

18

47889193

BOX

Canister

1шт.

19

14892649

SPECIAL PIN,41.28mm OD x 177.8mm L

2шт.

20

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

4шт.

21

87635861

ROLL PIN

4шт.

22

87393082

CHAIN

Safety 20,000 lbs

1шт.

23

04681211

BUSHING

1шт.

24

06400065

WASHER

Heavy

1шт.

25

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

26

86992219

LOCK NUT

1шт.

27

84399324

HITCH

Cat IV, 2 Hole

1шт.

28

84257536

PIN

Hitch

2шт.

29

17426001

WASHER

2шт.

30

47478854

PIN

2шт.

31

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

32

47904949

STOP

2шт.

33

87427177

U-BOLT

4шт.

34

84399165

JACK

1шт.

35

47666377

STOP

2шт.

36

14810251

HEADED PIN,15.88mm OD x 96.77mm L

2шт.

37

14720411

COTTER PIN

2шт.
