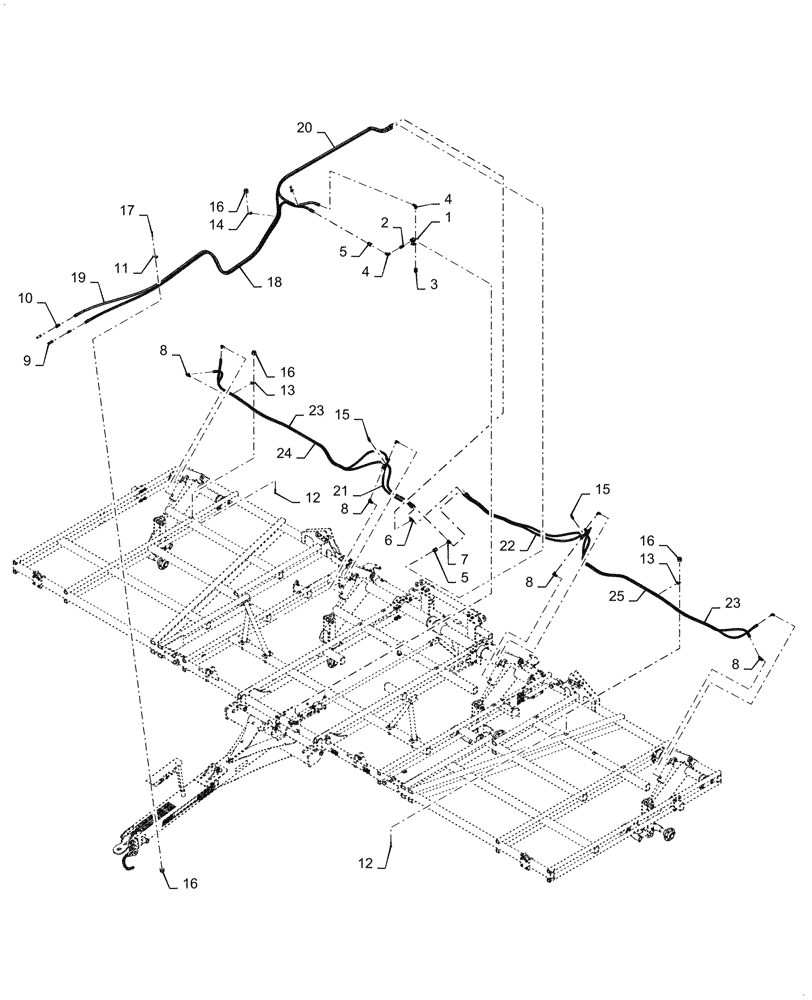

Запчасти Case IH TM255 (35.100.021) - LIFT HYDRAULICS 35 FOOT (35) - HYDRAULIC SYSTEMS

1

47937500

VALVE

SPDC

1шт.

2

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

5

84269593

FILTER

100 Micron

2шт.

6

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

7

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

8шт.

9

25705041

COUPLING

3/4"

2шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

11

06200125

HOSE CLAMP

2шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

15шт.

13

22510700

HOSE CLAMP,15.86mm

14шт.

14

22510710

HOSE CLAMP

3/4"

7шт.

15

84360212

CABLE TIE,294.2mm L, Nylon

2шт.

16

88902

NUT,3/8"-16

23шт.

17

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

18

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

19

1337264C1

HOSE ASSY.

1/2" x 285"

1шт.

20

91207C1

HYDRAULIC HOSE,12.70 mm ID x 3300.00 mm, SAE 100R1

1шт.

21

1284338C1

HYDRAULIC HOSE

3/8" x 37"

1шт.

22

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

1шт.

23

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

2шт.

24

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

1шт.

25

1284314C1

HYDRAULIC HOSE

3/8" x 235"

1шт.
