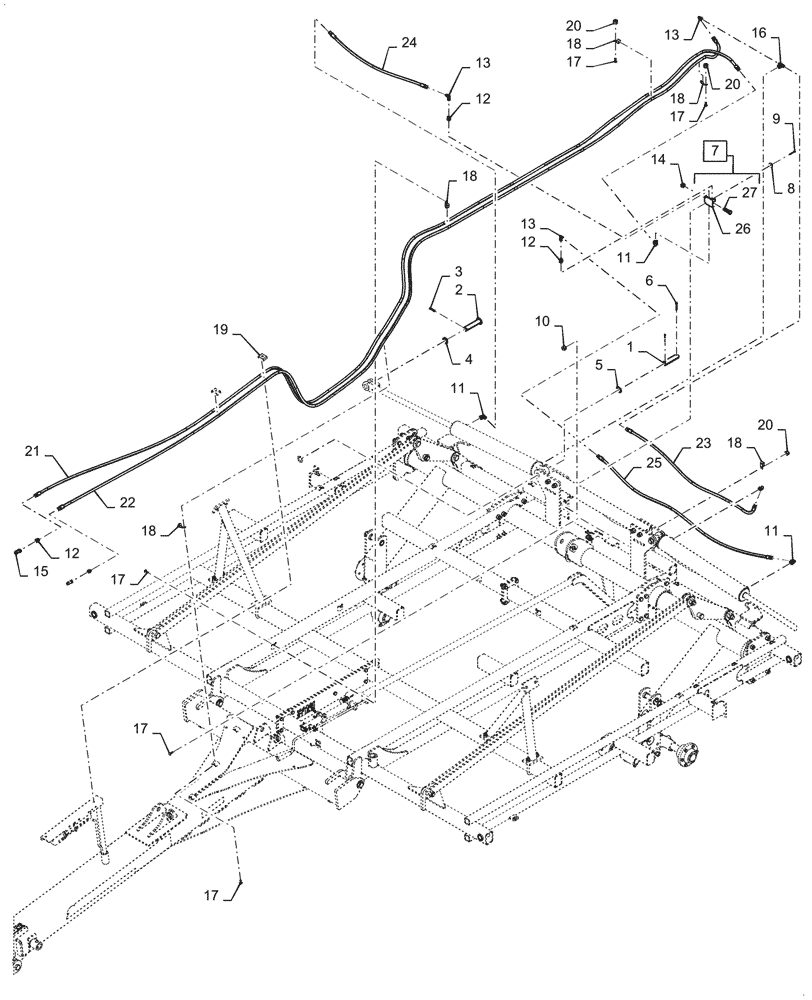

Запчасти Case IH TM255 (35.100.020) - FOLD HYDRAULICS 35 FOOT (35) - HYDRAULIC SYSTEMS

1

84244537

PIN

1.25" x 5.66"

2шт.

2

14820442

PIN,31.75mm OD x 153.29mm L

2шт.

3

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

4

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

2шт.

5

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

4шт.

6

88182

COTTER PIN,1/4" OD x 2" L

4шт.

7

47916462

Valve Flow Divider Assembly, Incl 26, 27

FLOW DIVIDER

1шт.

8

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

280129

NUT,1/4"-20

2шт.

11

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

12

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

3шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

25705041

COUPLING

2шт.

16

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

17

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

9шт.

18

22510700

HOSE CLAMP,15.86mm

9шт.

19

06200125

HOSE CLAMP

2шт.

20

88902

NUT,3/8"-16

3шт.

21

87435638

HYDRAULIC HOSE

3/8" x 335"

1шт.

22

193225A1

HYDRAULIC HOSE

3/8" x 325"

1шт.

23

1254574C2

HYDRAULIC HOSE

3/8" x 60"

1шт.

24

1251944C1

HYDRAULIC HOSE

3/8" x 41"

1шт.

25

195504C2

HYDRAULIC HOSE

3/8" x 80"

1шт.

26

47916470

BLOCK

1шт.

27

47916474

INSERT

1шт.
