Запчасти Case IH TM255 (35.100.010) - HYDRAULIC LIFT, SINGLE FOLD (35) - HYDRAULIC SYSTEMS

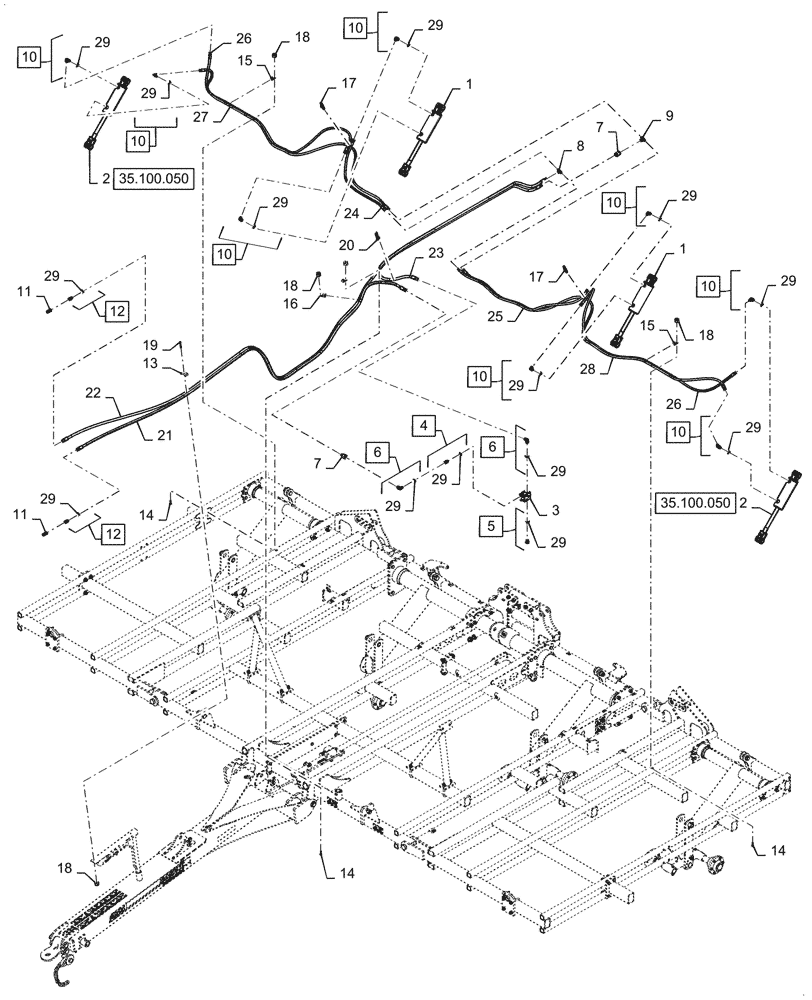

Схема запчастей Case IH TM255 - (35.100.010) - HYDRAULIC LIFT, SINGLE FOLD (35) - HYDRAULIC SYSTEMS
35.100.050
11
11
29
29
1
2
22
21
18
12
29
18
20
5
29
16
17
14
1
24
6
26
26
15
10
8
6
10
29
10
18
10
17
13
12
10
19
23
7
29
7
29
14
29
15
29
14
29
10
29
25
2
27
10
3
18
29
4
10
29
28
9
29
35.100.050

Артикул

Название

Примечание

Количество

1

47407272

HYDRAULIC CYLINDER

1шт.

2

47407270

HYDRAULIC CYLINDER

1шт.

3

47937500

VALVE

SPDC

1шт.

4

87698808

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

5

214389

PLUG,3/4" - 16 ORB

Incl 29

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

7

84269593

FILTER

Strainer, 100 Micron

2шт.

8

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

9

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

10

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 29

8шт.

11

25705041

COUPLING

Hydraulic Male

2шт.

12

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 29

2шт.

13

06200125

HOSE CLAMP

2шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

15шт.

15

22510700

HOSE CLAMP,15.86mm

14шт.

16

22510710

HOSE CLAMP

7шт.

17

84360212

CABLE TIE,294.2mm L, Nylon

2шт.

18

88902

NUT,3/8"-16

23шт.

19

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

20

327144A1

STRAP,328mm L

1шт.

21

134215A1

HYDRAULIC HOSE

1шт.

22

1337264C1

HOSE ASSY.

1/2" x 205" Length

1шт.

23

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

24

1284301C1

HYDRAULIC HOSE

1/2" x 110" Length

1шт.

25

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

1шт.

26

139654C2

HYDRAULIC HOSE

3/8" x 125" Length

2шт.

27

1284252C1

HYDRAULIC HOSE

3/8" x 140" Length

1шт.

28

129759C2

HYDRAULIC HOSE

3/8" x 180" Length

1шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
