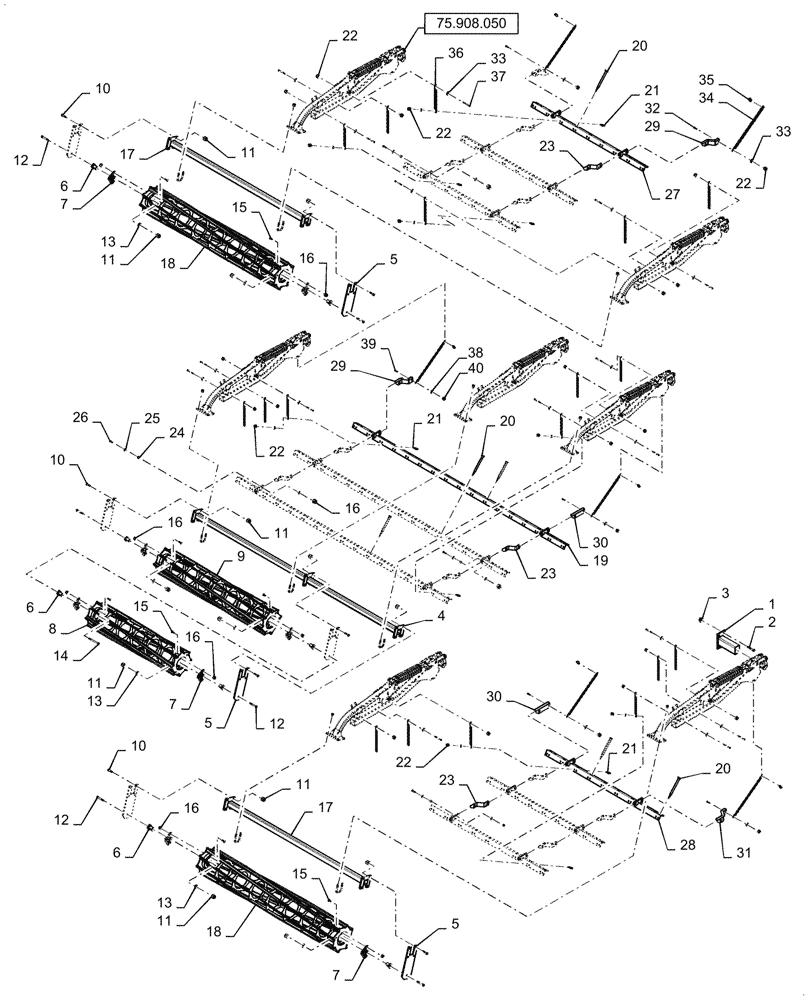

Запчасти Case IH TM255 (75.908.020) - ACS, 3 BAR SPIKE (75) - SOIL PREPARATION

1

47796614

TUBE

10.75" Stub

1шт.

2

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

4шт.

3

84180923

FLANGE NUT

4шт.

4

47596263

TUBE

Basket Mount, 135"

1шт.

5

47817917

PLATE

Bearing Hanger

7шт.

6

47453057

SPINDLE

Bearing, Hard

12шт.

7

47451691

BEARING CONE

Flanged, Peer

12шт.

8

47432098

BASKET

75" 8 Bar

1шт.

9

47449563

BASKET

60" 8 Bar

1шт.

10

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

28шт.

11

85700693

NUT,5/8" - 11, Gr C

35шт.

12

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

6шт.

13

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

8шт.

14

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

1шт.

15

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

32шт.

16

88871

NUT,1/2"-13, GC

56шт.

17

47598753

TUBE

Basket Mount, 90"

2шт.

18

47449567

BASKET

90" 8 Bar

2шт.

19

47959200

ANGLE

17 Spike

3шт.

20

33407513

SHOVEL

Harrow Spike

108шт.

21

16306050

U-BOLT

108шт.

22

88902

NUT,3/8"-16

258шт.

23

47859141

PLATE

Link, Harrow

12шт.

24

02323001

BUSHING

30шт.

25

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

60шт.

26

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

30шт.

27

47959194

ANGLE

9 Spike

3шт.

28

47959195

ANGLE

10 Spike

3шт.

29

48027449

LINK

Harrow, LH Pull

3шт.

30

48027368

LINK

Harrow, Straight Pull

2шт.

31

48027363

LINK

Harrow, RH Pull

1шт.

32

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

33

17407015

WASHER

42шт.

34

47963674

CHAIN

1/4 x 25.5 Long

6шт.

35

270184

LINCH PIN,6.35mm OD

6шт.

36

48034301

CHAIN

1/4 x 14.28 Long

18шт.

37

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

18шт.

38

48026529

BUSHING

Stop Spike Angle

2шт.

39

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

40

88902

NUT,3/8"-16

1шт.
