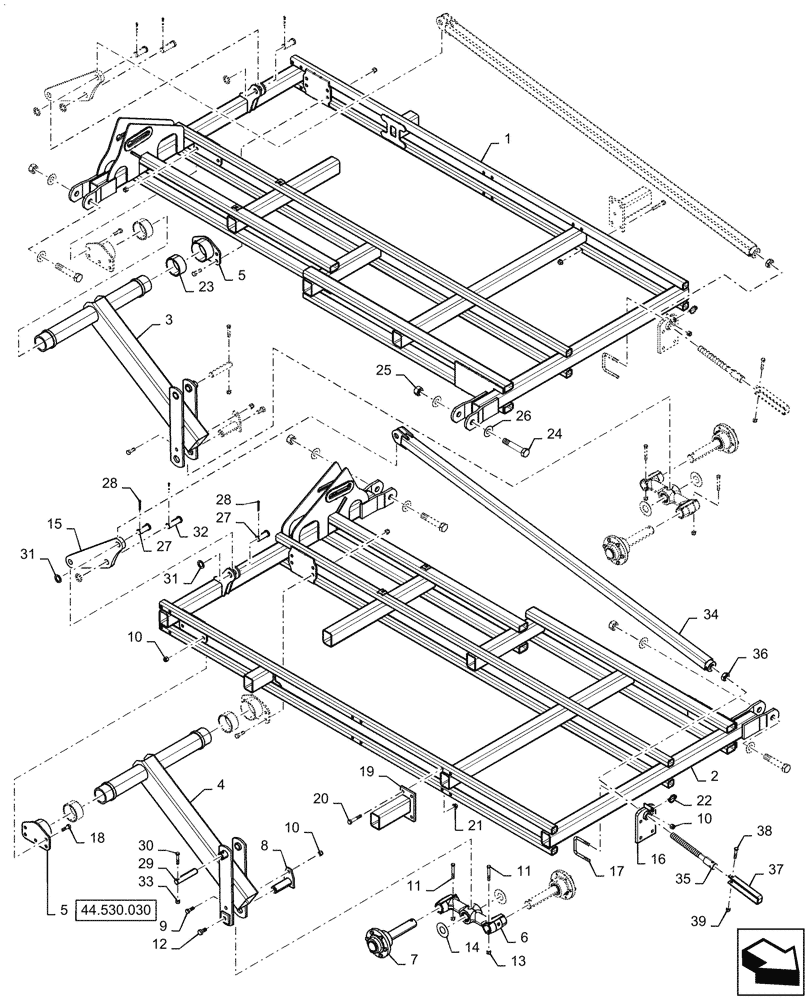

Запчасти Case IH TM255 (39.100.090) - WING FRAME 25 FOOT (39) - FRAMES AND BALLASTING

1

47888759

FRAME

Left Single Fold

1шт.

2

47888761

FRAME

Right Single Fold

1шт.

3

47795651

FRAME

Left Wing Rockshaft

1шт.

4

47795652

FRAME

Right Wing Rockshaft

1шт.

5

47801178

SUPPORT

Rockshaft

1шт.

6

47920071

CASTER

Walking Tandems

2шт.

7

47842667

HUB

6 Bolt 783

4шт.

8

47922232

PIN

1.75" OD

2шт.

9

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

10

85700693

NUT,5/8" - 11, Gr C

26шт.

11

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

12

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

13

88871

NUT,1/2"-13, GC

4шт.

14

47733606

WASHER

1.75 ID x 3.75 OD

4шт.

15

47776477

PLATE

Cylinder Wing Rocker

2шт.

16

48032903

PLATE

Link Mount

2шт.

17

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

4шт.

18

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

19

47796614

TUBE

10.75"

2шт.

20

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

8шт.

21

84180923

FLANGE NUT

.625

8шт.

22

D33805

PIN

Klik

2шт.

23

47753605

BUSHING

Nylatron

1шт.

24

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

4шт.

25

86992220

NUT

1.25"

4шт.

26

47733622

WASHER

8шт.

27

84156992

PIN

1.250 x 3.00"

4шт.

28

88182

COTTER PIN,1/4" OD x 2" L

6шт.

29

47922239

PIN

1.25" x 6.57"

2шт.

30

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

31

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

32

84156994

CLEVIS PIN

1.250 x 3.75

2шт.

33

88871

NUT,1/2"-13, GC

2шт.

34

47879139

TUBE

Wing Adjustment

1шт.

35

47880190

SCREW

Depth Adjustment

1шт.

36

4667

TOY,0.38" ID x 156.00", SAE J517, SAE 100R2 AT

1шт.

37

06400160

CRANKED HANDLE

Depth Adjustment

1шт.

38

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

39

88871

NUT,1/2"-13, GC

1шт.
