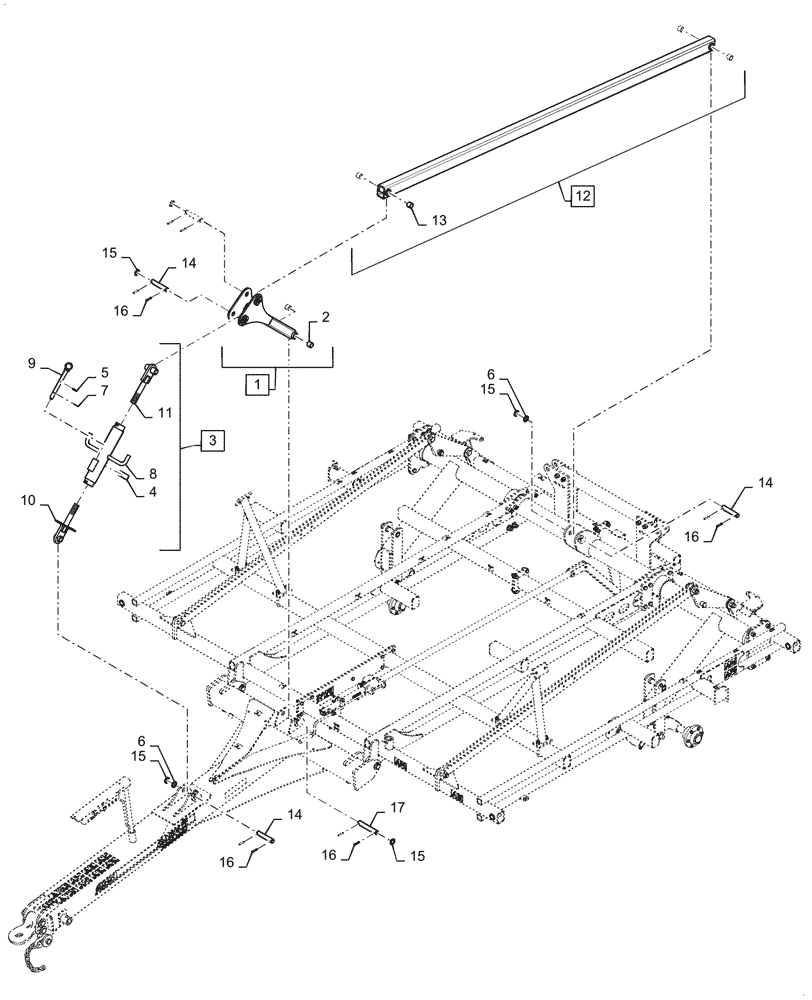

Запчасти Case IH TM255 (37.166.027) - CONSTANT LEVEL, DOUBLE FOLD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47850527

LINKAGE

Incl 2

1шт.

2

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

2шт.

3

47807463

TURNBUCKLE

Assy, Incl 4 - 11

1шт.

4

87395867

DECAL

1шт.

5

1978738C1

HAIR PIN COTTER

1шт.

6

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

1шт.

7

87348940

SNAP RING

1шт.

8

NSS

NOT SOLD SEPARAT

Turnbuckle Body

1шт.

9

47900750

PIN

Turnbuckle Pin

1шт.

10

48025972

SCREW

LH, Adjustment Screw

1шт.

11

48025974

SCREW

RH, Adjustment Screw

1шт.

12

47847097

TUBE

Incl 13

1шт.

13

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

4шт.

14

47922237

PIN

4шт.

15

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

5шт.

16

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

10шт.

17

47922242

PIN

1шт.
