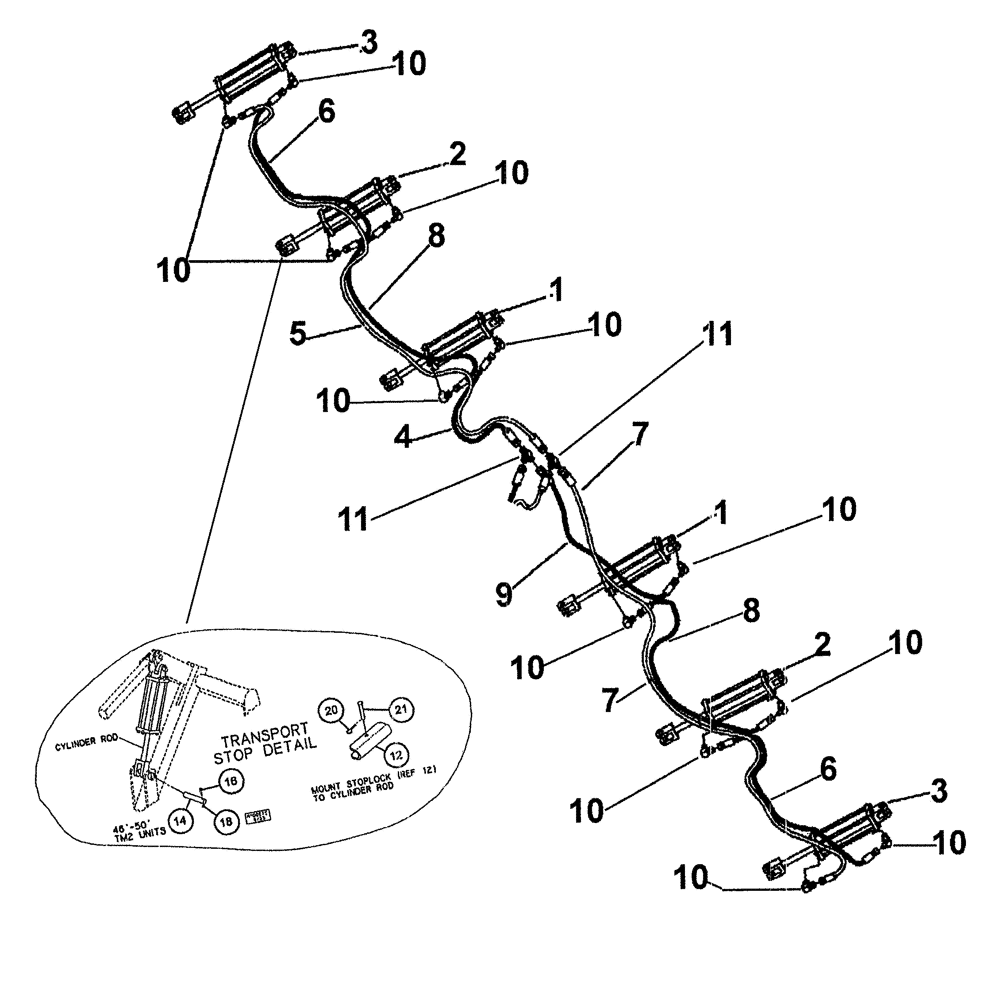

Запчасти Case IH TIGERMATE II (35.100.02) - TRANSPORT HYDRAULICS 38-1/2 THROUGH 50-1/2 MODELS (35) - HYDRAULIC SYSTEMS

1

87423771

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8, Rephase, Monarch, 38-1/2 To 50-1/2 LAST FOLD wing cylinder (3X8)

2шт.

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II, Reman For New P/N 87423771

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

84255910

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Replaces 87423771 - Eagle

2шт.

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

2

87423770

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/4 x 8, Rephase, 38-1/2 To 50-1/2 Models FIRST FOLD

2шт.

87423770R

REMAN-HYD CYLINDER

200, TIGERMATE II CASE IH FIELD CULTIVATOR

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

3

87423768

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, Rephase, 38-1/2 To 48-1/2 MAIN FRAME cylinder (3-1/2X8).

2шт.

87423768R

REMAN-HYD CYLINDER

200, TIGERMATE II

2шт.

87423768C

CORE-HYD CYLINDER

Return Number

1шт.

3

87423766

CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3-3/4 x 8, 50-1/2 Foot Models

2шт.

3

87423766R

REMAN-HYD CYLINDER

Remanufactured Hydraulic Cylinder

2шт.

3

87423766C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER

2шт.

3

25037580C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

4

25600758

HYDRAULIC HOSE,0.38" ID x 39.00", SAE 100R17

38 To 44 Models

1шт.

4

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

46 To 48 Models

1шт.

5

25600761

HYDRAULIC HOSE

3/8 x 218, 38 To 40 Models

1шт.

5

25600756

HYDRAULIC HOSE,0.38" ID x 242.00", SAE 100R17

42 To 46 Models

1шт.

5

25600750

HYDRAULIC HOSE,0.38" ID x 263.00", SAE 100R17

48 To 50 Models

1шт.

6

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

38 to 46 Models

2шт.

6

25600727

HYDRAULIC HOSE,0.38" ID x 116.50", SAE 100R17

48 To 50 Models

2шт.

7

25600653

HYDRAULIC HOSE,0.38" ID x 294.00", SAE 100R17

38 to 40 Models

1шт.

7

25600737

HYDRAULIC HOSE,0.38" ID x 300.00", SAE 100R17

42 To 46 Models

1шт.

7

25600725

HYDRAULIC HOSE,0.38" ID x 335.00", SAE 100R17

48 To 50 Models

1шт.

8

25600734

HYDRAULIC HOSE,0.38" ID x 124.50", SAE 100R17

38 To 40 Models

2шт.

8

25600716

HYDRAULIC HOSE,0.38" ID x 139.50", SAE 100R17

42 to 46 Models

2шт.

8

25600814

HYDRAULIC HOSE

3/8 x 148, 48 To 50 Models

2шт.

9

25600720

HYDRAULIC HOSE,0.38" ID x 90.00", SAE 100R17

38 To 44 Models

1шт.

9

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

46 to 50 Models

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12шт.

11

218-594

TEE,3/4"-16, 37 Degree

2шт.

12

87404919

STOP

12, Transport

1шт.

14a

14891623

SPECIAL PIN

1 x 5.50, 12 Mainframe Only

2шт.

14b

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 x 5.75, 14 Mainframe And Wings

6шт.

16

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

6шт.

18

86992213

NUT

3/8, NC, Stover

6шт.

19

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

2шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/4

1шт.

21

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.
