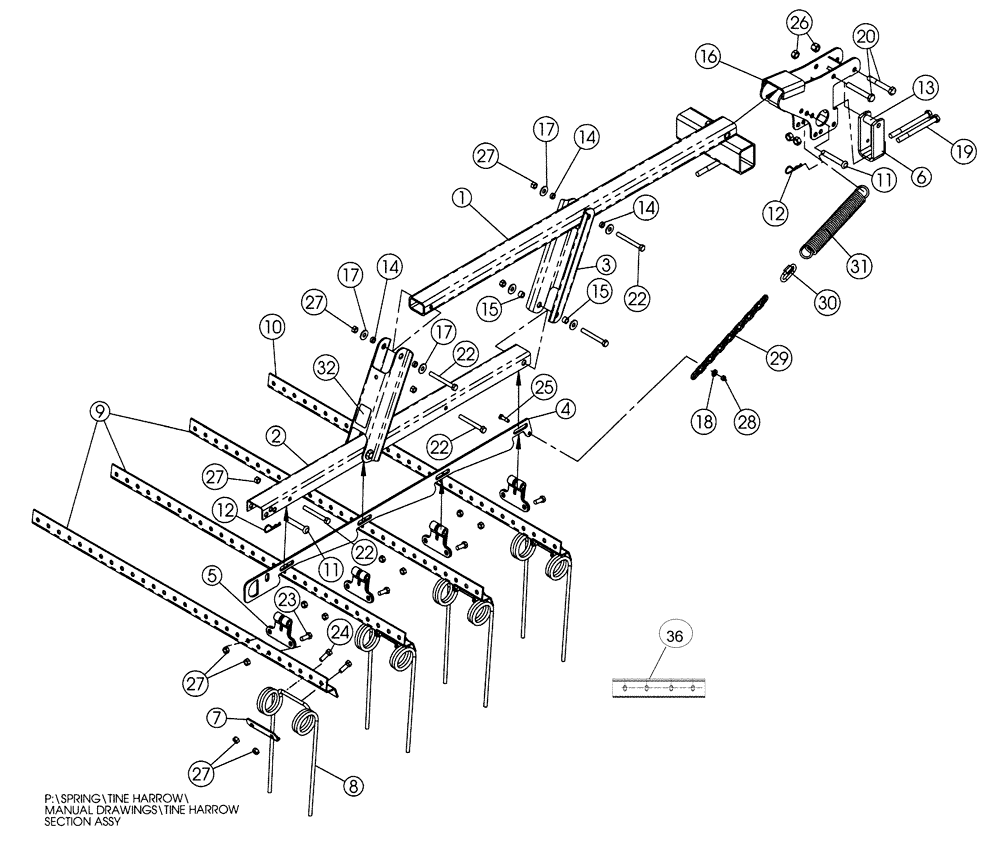

Запчасти Case IH TIGERMATE II (75.200.05) - TIGER TINE HARROW PARTS (75) - SOIL PREPARATION

1

06404160

TUBE,58.13" Length

Mount Extension

2шт.

2

87457440

CHANNEL

Formed

2шт.

New Arms And Bushings Are Needed Due To Change In Hole Size

1шт.

3

06404110

LIFT ARM

Parallel, 14-1/2, Years: -01-DEC-05

4шт.

3

87457435

ARM

Parallell, 14-1/2

4шт.

4

06404120

ADJUSTER

Tine, Slide

2шт.

5

06404136

HINGE

Tine Hinge Casting

8шт.

6

06405130

CLAMP

2, Bolt

2шт.

7

06404220

CHANNEL

Tine, 8

1шт.

8

33443707

TINE

8, Coil

1шт.

9

06404175

CHANNEL

Tine, 4 On 16 Spacing, 3 On 24 Spacing, 56 Inches

3шт.

9

06404185

CHANNEL

Tine, 5 On 16 Spacing, 72 Inches

3шт.

9

06404195

CHANNEL

Tine, 6 On 16 Spacing, 88 Inches

3шт.

9

06404205

CHANNEL

Tine, 7 On 16 Spacing, 5 On 24 Spacing, 104 Inches

3шт.

9

06404215

CHANNEL

Tine, 8 On 16 Spacing, 120 Inches

3шт.

10

06404325

TINE BAR

2 On 24 Spacing, 32 Inches

1шт.

10

06404175

CHANNEL

Tine, 4 On 16 Spacing, 3 On 24 Spacing, 56 Inches

1шт.

10

06404345

CHANNEL

Tine, 4 On 24 Spacing, 80 Inches

1шт.

10

06404205

CHANNEL

Tine, 7 On 16 Spacing, 5 On 24 Spacing, 104 Inches

1шт.

10

06404365

TINE BAR

6 On 24 Spacing, 128 Inches

1шт.

11

14810275

CLEVIS

5/8 x 4

4шт.

12

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

4шт.

13

06405140

SPACER

Bushing

2шт.

14

06404106

SLEEVE

, Years: -01-DEC-05

8шт.

14

87457432

BUSHING,12.95mm ID x 25.4mm OD x 7.37mm L

Sleeve, H.T.

8шт.

15

06404112

PLUG

Pivot, Years: -01-DEC-05

8шт.

15

87457434

BUSHING,12.95mm ID x 25.4mm OD x 13.46mm L

Pivot

8шт.

16

87453778

MOUNTING PARTS

1шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

16шт.

18

17407015

WASHER

7/16 x 1/8, Thick

2шт.

19

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

20

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

4шт.

22

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

85700693

NUT,5/8" - 11, Gr C

8шт.

27

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

28

86992213

NUT

3/8, NC, Stover

4шт.

29

22004161

CHAIN,528.57mm L

1/4 x 19-1/2

2шт.

30

22105011

LINK ASSY.

5/16, Quick

2шт.

31

24320010

SPRING

9, Extension, Years: -01-DEC-04

2шт.

31

87453100

COIL SPRING

13, Extension, Start Year: 01-JAN-05

2шт.

32

18534380

DECAL

Tine Angle

2шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

34

87405850

SPRING

Spring And Chain Includes Ref. 18, 28-31 & 33, Years: -01-DEC-04

1шт.

35

87454585

KIT

Tine Mount Adapter

1шт.

Enough To Do One Harrow Section

1шт.

36

06404260

CHANNEL

Tine Bar Repair Splice

1шт.
