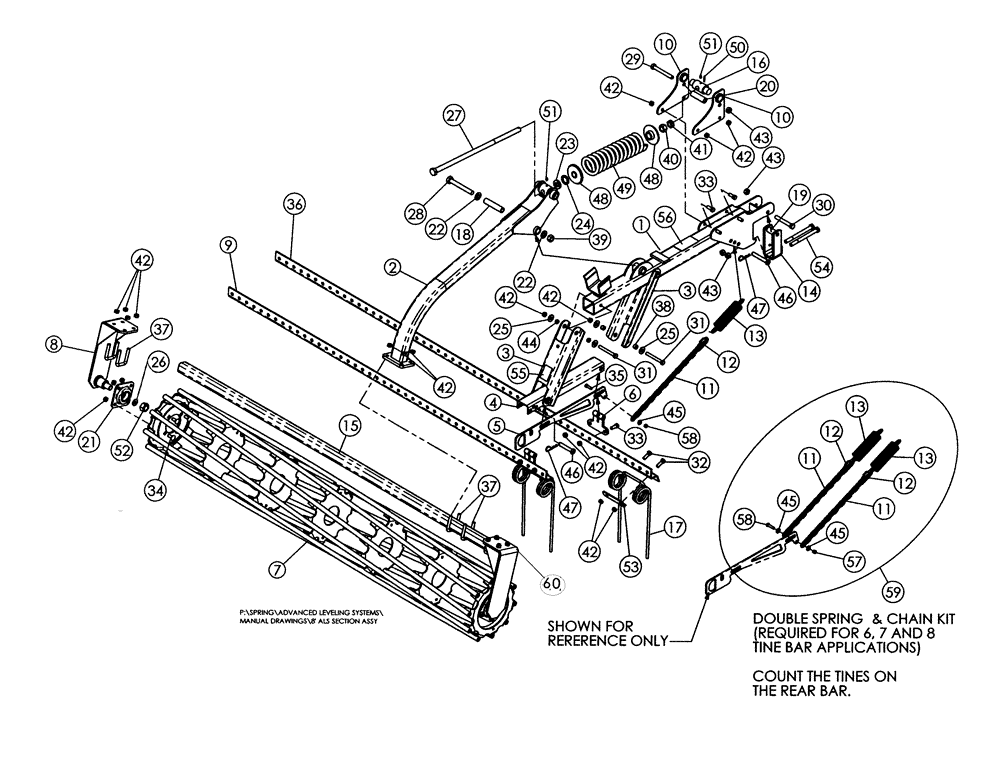

Запчасти Case IH TIGERMATE II (75.200.03) - ACS PARTS BREAKDOWN (75) - SOIL PREPARATION

1

06407100

ARM ASSY.

Mounting

2шт.

2

06407140

FRAME

Rear, Mount

2шт.

3

87457435

ARM

Parallel, 14-1/2

4шт.

4

87457437

CHANNEL

Formed

2шт.

5

06407203

SLIDE

2шт.

6

06404136

HINGE

Tine, Casting

4шт.

7

06407365

BASKET ASSY

60, Rounds

1шт.

7

06407375

BASKET ASSY

75, Rounds

1шт.

7

06407385

BASKET ASSY

90, Rounds

1шт.

7

06407395

BASKET ASSY

105, Rounds

1шт.

7

06407315

BASKET ASSY

120, Rounds

1шт.

7

87441585

BASKET ASSY

60, Flats

1шт.

7

87441583

BASKET ASSY

75, Flats

1шт.

7

87438199

BASKET ASSY,331.6mm OD x 2279mm L

90, Flats

1шт.

7

87438198

BASKET ASSY,331.6mm OD x 2657mm L

105, Flats

1шт.

7

87438010

BASKET ASSY,331.6mm OD x 3038mm L

120, Flats

1шт.

8

06407300

PLATE ASSY.

Bolt-On Bearing

2шт.

8

84211286

BRACKET, SUPPORTING

Later model

2шт.

9

06404175

CHANNEL

Tine, 4 On 16 Spacing, 3 On 24 Spacing, 56 Inches

1шт.

9

06404185

CHANNEL

Tine, 5 On 16 Spacing, 72 Inches

1шт.

9

06404195

CHANNEL

Tine, 6 On 16 Spacing, 88 Inches

1шт.

9

06404205

CHANNEL

Tine, 6 On 16 Spacing, 5 On 24 Spacing, 104 Inches

1шт.

9

06404215

CHANNEL

Tine, 8 On 16 Spacing, 120 Inches

1шт.

10

06407120

SUPPORT ASSY.

Spring

4шт.

11

22004161

CHAIN,528.57mm L

1/4 x 19-1/2

2шт.

12

22105011

LINK ASSY.

5/16 Quick

2шт.

13

24320010

SPRING

Extension, 9

2шт.

14

06405130

CLAMP

2, Bolt

2шт.

15

06407351

SUPPORT TUBE

Support, 60 Basket

1шт.

15

06407371

SUPPORT TUBE,1892.3 mm Length

Support, 75 Basket

1шт.

15

06407381

SUPPORT TUBE,2273.3 mm Length

Support, 90 Basket

1шт.

15

06407391

SUPPORT TUBE,2648 mm Length

Support, 105 Basket

1шт.

15

06407311

SUPPORT TUBE

Support, 120 Basket

1шт.

16

06407125

TRUNNION

Trunion, Mount End

2шт.

17

33443707

TINE

8, Coil

1шт.

18

06407149

BUSHING

Pivot

2шт.

19

06405140

SPACER

Bushing

2шт.

20

06407126

BUSHING

2шт.

21

84151226

BALL BEARING,33.02mm ID

for mount 84211286

2шт.

21

ST491A

BALL BEARING,45mm ID

for mount 06407300

2шт.

22

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

23

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

24

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 Ga

2шт.

25

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

16шт.

26

17916100

WASHER

1" ID x 6mm thick

2шт.

27

16901495

SPECIAL BOLT

7/8 x 23-1/2, NC

2шт.

28

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

29

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

30

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

2шт.

31

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

8шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

16шт.

34

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

36

06404175

CHANNEL

Tine, 4 On 16 Spacing, 3 On 24 Spacing, 56 Inches

1шт.

36

06404345

CHANNEL

Tine, 4 On 24 Spacing, 80 Inches

1шт.

36

06404205

CHANNEL

Tine, 7 On 16 Spacing, 5 On 24 Spacing, 104 Inches

1шт.

36

06404365

TINE BAR

Tine, 6 On 24 Spacing, 128 Inches

1шт.

37

16308110

U-BOLT

1/2 x 2 x 3

8шт.

38

87457434

BUSHING,12.95mm ID x 25.4mm OD x 13.46mm L

Pivot, H.T.

8шт.

39

280375

NUT,3/4"-10, GC

2шт.

40

9849647

NUT,7/8"-9, G5

2шт.

41

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

42

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

43

85700693

NUT,5/8" - 11, Gr C

1шт.

44

87457432

BUSHING,12.95mm ID x 25.4mm OD x 7.37mm L

Sleeve H.T.

8шт.

45

17407015

WASHER

7/16 x 1/8, Thick, gr 8

2шт.

46

14810275

CLEVIS

5/8 x 4

4шт.

47

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

48

20090120

SPRING BOX

Double

4шт.

49

24162506

SPRING

Compression

2шт.

50

438-31220

PIN,3/16" x 1 1/4", Coiled

2шт.

51

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

52

86992219

LOCK NUT

1, NC, Stover

2шт.

53

06404220

CHANNEL

Tine

1шт.

54

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

55

18534380

DECAL

Tine Angle

2шт.

56

18534381

DECAL

Information

2шт.

57

86992213

NUT

3/8, NC, Stover

2шт.

58

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

59

87405850

SPRING

Spring And Chain, Include Ref. 11 - 13, 45, & 57 - 58

1шт.

To Convert Single Spring Application To Double Spring Application - Required on 6-8 Rear Tine Sections

1шт.

60

87741924

PLATE

For basket bearing plate # 8

1шт.
