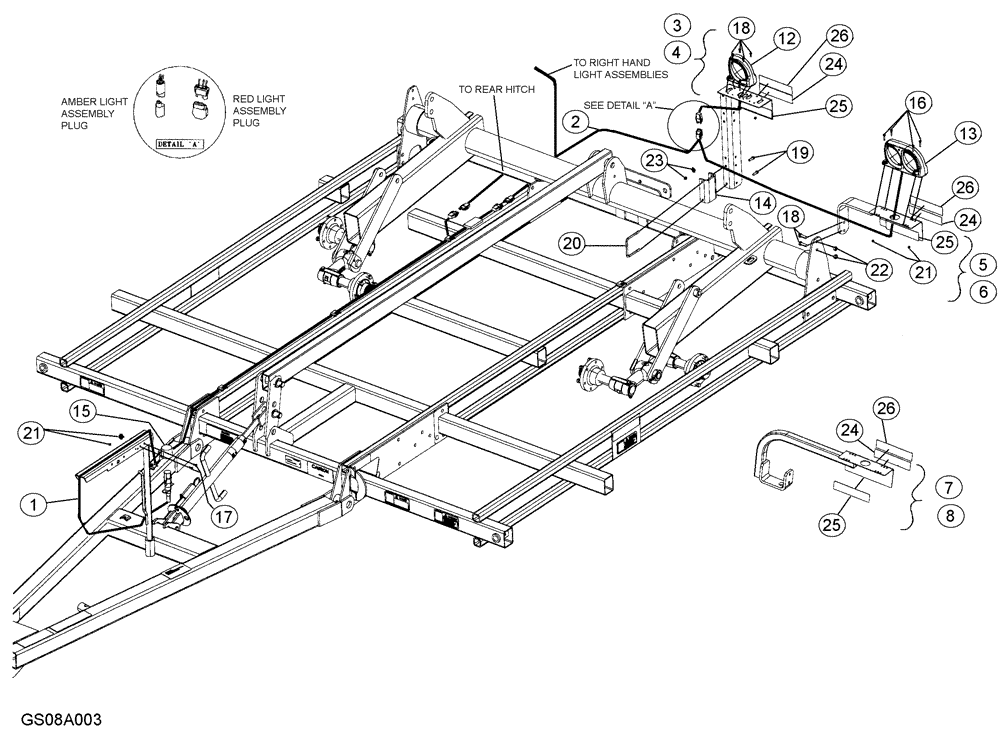

Запчасти Case IH TIGERMATE II (55.404.01) - WARNING AND TAIL LIGHT KIT SINGLE FOLD 12-1/2 THROUGH 38-1/2 (55) - ELECTRICAL SYSTEMS

1

87426220

WIRE HARNESS

Front, Years: -01-DEC-04

1шт.

1

87446673

WIRE HARNESS

Front, Start Year: 01-JAN-05

1шт.

1

87555578

WIRE HARNESS

Front t Incl Logic Modual 47595348, Start Year: 01-JAN-07

1шт.

2

87426222

WIRE HARNESS

Rear, Years: -01-DEC-04

1шт.

2

87446754

WIRE HARNESS

Rear, Start Year: 01-JAN-05

1шт.

3

87328898

BRACKET

Left, Assembly Includes Ref. 24 - 26

1шт.

Used On All Sizes Of Units

1шт.

4

87328897

BRACKET

Right, Assembly Includes Ref. 24 - 26

1шт.

Used On All Sizes Of Units

1шт.

5

87556829

BRACKET

Left, Assembly Includes Ref. 24 - 26

1шт.

Used On 20 And 22 Foot Units Only

1шт.

6

87556828

BRACKET

Right Assembly Includes Ref. 24 - 26

1шт.

Used On 20 And 22 Foot Units Only

1шт.

7

87556815

BRACKET

Left, Assembly Includes Ref. 24 - 26

1шт.

Used On 18, 24, 28-32, & 38 Foot Units Only

1шт.

8

87556814

BRACKET

Right, Assembly Incudes Ref. 24 - 26

1шт.

Used On 18, 24, 28-32, & 38 Foot Units Only

1шт.

12

87520382

LIGHT

Red, Single, Rh

1шт.

12

87519398

LIGHT

Red, Single, Lh

1шт.

13

87519394

LIGHT,12V, 21W, Amber

Amber

2шт.

14

87415482

BRACKET

2шт.

15

27601214

HOLDER

Plug

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

20

87629083

U-BOLT

2шт.

21

86992211

NUT

1/4, NC

18шт.

22

86992215

LOCK NUT,1/2"-13, GC

Stover

4шт.

23

86992213

NUT

Stover, 3/8, NC

8шт.

24

311863A1

REFLECTOR

Red

4шт.

25

311864A1

REFLECTOR

Yellow

4шт.

26

311865A1

REFLECTOR

Flouresent

4шт.

27

87435657

HARNESS

Rear Hitch, Cobo, 4 Pin, Years: -01-DEC-05

1шт.

27

87446767

WIRE HARNESS

Rear Hitch, Cobo, 4 Pin, Start Year: 01-JAN-06

1шт.

27

87611500

WIRE HARNESS

6 Pin

1шт.

28

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP (Not Shown)

1шт.

28

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (Not Shown)

1шт.

29

84178558

LENS

Replacement, Amber (Not Shown)

1шт.

29

27601216

LENS

Replacement, Red (Not Shown)

1шт.
