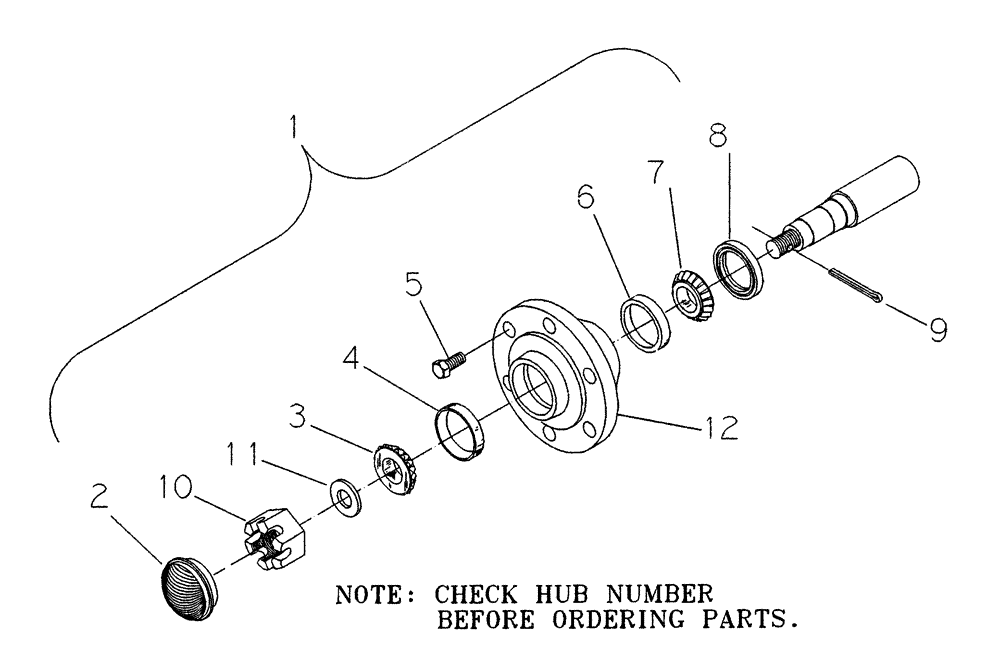

Запчасти Case IH TIGERMATE II (44.100.14) - 710 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

87327566

SPINDLE

Includes Ref. 1-13 (Not Shown)

1шт.

1

28171000

HUB ASSY.

Q-710, 6-Bolt, Includes Ref. 2-12

1шт.

2

28477700

HUB CAP

1шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

1.25, Timken LM67048

1шт.

3

84356153GV

BEARING

Value

1шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

2.33 OD, Timken LM67010

1шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2, NF, Lug

6шт.

6

86516467

BEARING CUP,65.08mm OD x 13.97mm W

2.56 OD, Timken LM48510

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1.38, Timken LM48548

1шт.

8

614410R91

SEAL

1.63 ID x 2.63 OD, CR16322

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

11

17915000

WASHER

2шт.

12

28270900

HUB ASSY.

1шт.

13

87327569

STUB AXLE/STEERING S

710, 1.875 OD

1шт.
